CS5124XDR8G

Controller, SOP, 90ns

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: CS5124XDR8G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-27

From Other Seller

Part Number:CS5124XDR8G
US $1.00 - 10.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

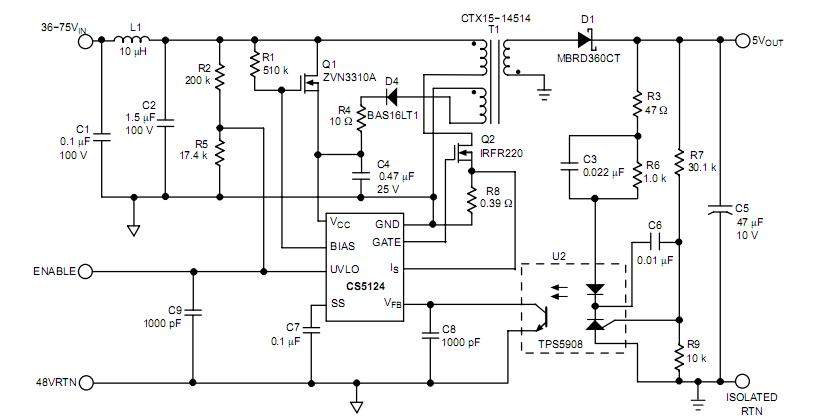

The CS5124XDR8G is a fixed frequency current mode controller. It is designed specifically for DC-DC converters found in the telecommunications industry. The CS5124XDR8G integrates many commonly required current mode power supply features and allows the power supply designer to realize substantial cost and board space savings. The CS5124XDR8G integrates the following features: Internal Oscillator, Slope Compensation, Sleep On/Off, Undervoltage Lock Out, Thermal Shutdown, Soft-Start Timer, Low Voltage Current Sense for Resistive Sensing, Second Current Threshold for Pulse-by-Pulse overcurrent Protection, a Direct Optocoupler Interface and Leading Edge Current Blanking. The CS5124XDR8G has supply range of 7.7 V to 20 V and is available in 8 pin SOIC narrow package.
