Product Summary

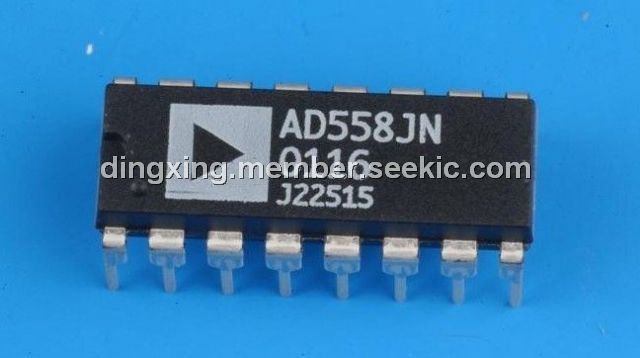

The AD558JN DACPORT is a complete voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision voltage reference on a single monolithic chip. No external components or trims are required to interface, with full accuracy, an 8-bit data bus to an analog system.
Parametrics
AD558JN absolute maximum ratings: (1)VCC to Ground: 0 V to +18 V; (2)Digital Inputs (Pins 1–10): 0 V to +7.0 V; (3)VOUT: Indefinite Short to Ground; (4)Power Dissipation: 450 mW; (5)Storage Temperature Range, N/P (Plastic) Packages: –25℃ to +100℃; D (Ceramic) Package: –55℃ to +150℃; (6)Lead Temperature (soldering, 10 sec): +300℃; (7)Thermal Resistance, Junction to Ambient/Junction to Case, D (Ceramic) Package: 100℃/W/30℃/W; N/P (Plastic) Packages: 140℃/W/55℃/W.
Features
AD558JN features: (1)Complete 8-Bit DAC; (2)Voltage Output–2 Calibrated Ranges; (3)Internal Precision Bandgap Reference; (4)Single-Supply Operation: +5 V to +15 V; (5)Full Microprocessor Interface; (6)Fast: 1 μs Voltage Settling to ±1/2 LSB; (7)Low Power: 75 mW; (8)No User Trims; (9)Guaranteed Monotonic Over Temperature; (10)All Errors Specified TMIN to TMAX; (11)Small 16-Pin DIP and 20-Pin PLCC Packages; (12)Single Laser-Wafer-Trimmed Chip for Hybrids.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD558JN |
|
IC DAC 8BIT V-OUT 16-DIP |
Data Sheet |
|
|
||||||||||||||||
 |
AD558JN/+ |
Analog Devices Inc. |
IC DAC 8BIT 5-15V IN MONO 16DIP |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
AD558JNZ |
|
IC DAC 8BIT V-OUT 16-DIP |
Data Sheet |
|
|
||||||||||||||||
