Product Summary
The AD744JN is a fast-settling, precision, FET input, monolithic operational amplifier. It offers the excellent dc characteristics of the AD711 BiFET family with enhanced settling, slew rate, and bandwidth. The AD744JN also offers the option of using custom compensation to achieve exceptional capacitive load drive capability.
Parametrics
AD744JN absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: 500 mW; (3)Input Voltage: ±18 V; (4)Output Short Circuit Duration: Indefinite; (5)Differential Input Voltage: +VS and –VS; (6)Storage Temperature Range (Q, H): –65℃ to +150℃; (7)Storage Temperature Range (N, R): –65℃ to +125℃; (8)Operating Temperature Range: 0℃ to +70℃; (9)Lead Temperature Range (Soldering 60 seconds): 300℃.
Features
AD744JN features: (1)500 ns Settling to 0.01% for 10 V Step; (2)1.5 μs Settling to 0.0025% for 10 V Step; (3)75 V/μs Slew Rate; (4)0.0003% Total Harmonic Distortion (THD); (5)13 MHz Gain Bandwidth Internal Compensation.

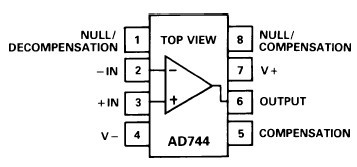

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD744JN |
Analog Devices Inc |
IC PREC OPAMP BIFET MONO 8-DIP |
Data Sheet |
|
|
||||||||||||||||||||
 |
AD744JNZ |
|
IC OPAMP BIFET 13MHZ PREC 8DIP |
Data Sheet |
|
|
||||||||||||||||||||
