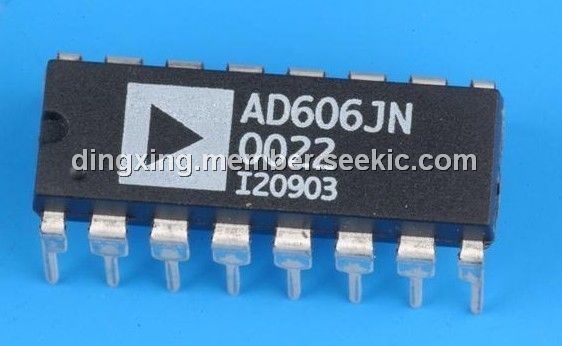

Product Summary
The AD606JN is a complete, monolithic logarithmic amplifier using a 9-stage “successive-detection” technique. It provides both logarithmic and limited outputs. AD606JN applications are: Ultrasound and Sonar Processing, Phase-Stable Limiting Amplifier to 100 MHz, Received Signal Strength Indicator (RSSI), Wide Range Signal and Power Measurement.
Parametrics
AD606JN absolute maximum ratings: (1)Supply Voltage VPOS: +9 V; (2)Internal Power Dissipation: 600 mW; (3)Operating Temperature Range: 0℃ to +70℃; (4)Storage Temperature Range: –65℃ to +150℃; (5)Lead Temperature Range (Soldering 60 sec): +300℃.
Features
AD606JN features: (1)–75 dBm to +5 dBm Dynamic Range; (2)Usable to >50 MHz; (3)37.5 mV/dB Voltage Output; (4)On-Chip Low-Pass Output Filter; (5)±1 dB Output Flatness over 80 dB Range; (6)±3° Phase Stability at 10.7 MHz over 80 dB Range; (7)Adjustable Output Amplitude; (8)+5 V Single Supply Operation; (9)65 mW Typical Power Consumption; (10)CMOS-Compatible Power-Down to 325 μW typ; (11)<5 μs Enable/Disable Time.

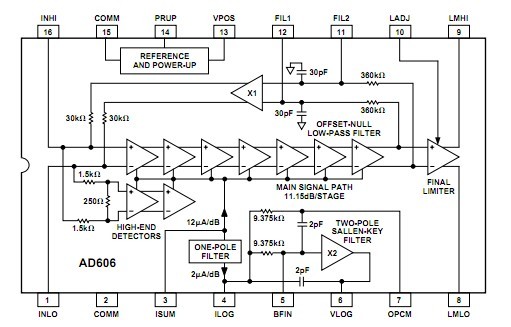

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD606JNZ |
|
IC AMP LOG LP 1.2MA 16DIP |
Data Sheet |
|
|
||||||||||||||
|
AD606JN |
|
IC AMP LOG LP 1.2MA 16DIP |
Data Sheet |
|
|
||||||||||||||
