Product Summary

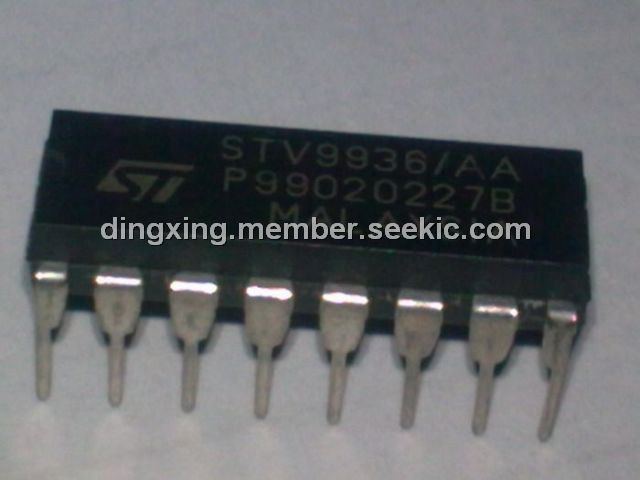

The STV9936AA is a triple-channel video amplifier designed in a 120V-high voltage technology and able to drive in DC-coupling mode the 3 cathodes of a CRT monitor. The STV9936AA supports PICTURE BOOST applications where video amplitude up to 50V or above is required, ensuring a maximum quality of the still pictures or moving video. Perfecly matched with the STV921x ST preamplifiers, it provides a highly performant and very cost effective video system.
Parametrics
STV9936AA absolute maximum ratings: (1)High supply voltage, VDD: 120V; (2)Low supply voltage,VCC: 16.5V; (3)ESD susceptibility, Human Body Model (100pF discharged through 1.5KW), VESD: 2kV; (4)ESD susceptibility, EIAJ norm (200pF discharged through 0W), VESD: 300V; (5)Output source current (pulsed < 50ms), IOD: 80mA; (6)Output sink current (pulsed < 50ms), IOG: 80mA; (7)Max Maximum Input Voltage VCC, VIN: +0.3V; (8)Min Minimum Input Voltage, VIN: -0.5V; (9)Junction Temperature, TJ: 150℃; (10)Storage Temperature, TSTG: -20 to +150℃.
Features
STV9936AA features: (1)Triple-channel video amplifier; (2)Supply voltage up to 115 V; (3)80V Output dynamic range; (4)Perfect for PICTURE BOOST application requiring high video amplitude; (5)Pinning for easy PCB layout; (6)Supports DC coupling (optimum cost saving) and AC coupling applications; (7)Built-in Voltage Gain: 20 (Typ.); (8)Rise and Fall Times: 12 ns (Typ.); (9)Bandwidth: 29 MHz (Typ.); (10)Very low stand-by power consumption; (11)Perfectly matched with the STV921x preamplifiers.

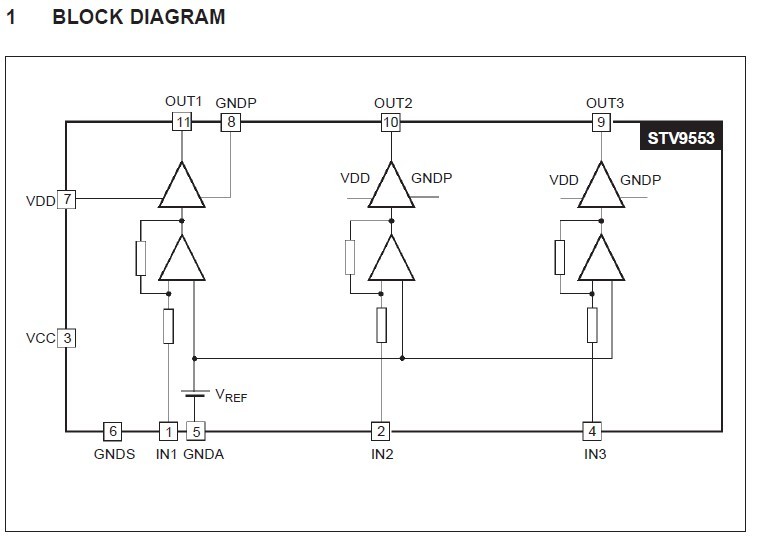

Diagrams
 |
