Product Summary

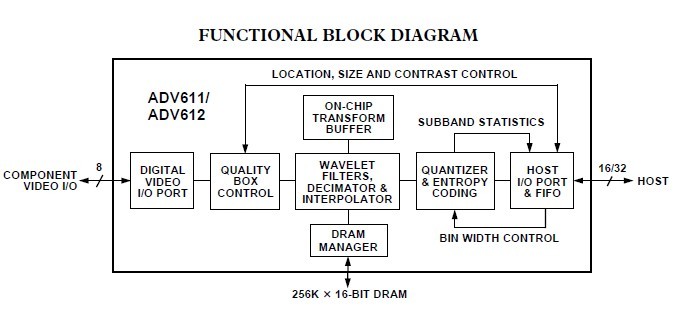

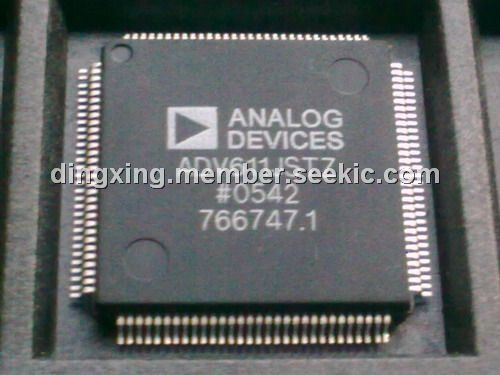

The ADV611JST is low cost, single chip, dedicated function, all-digital-CMOS-VLSI devices capable of supporting visually loss-less to 7500:1 real-time compression and decompression of CCIR-601 digital video at very high image quality levels. The chips integrate glueless video and host interfaces with on-chip SRAM to permit low part count, system level implementations suitable for a broad range of applications. The ADV611JST is 100% bitstream compatible with the ADV601. The ADV611JST comes in a 120-lead LQFP package.
Parametrics
Absolute maximum ratings: (1)Supply Voltage, VDD: –0.3 to +7V; (2)Input Voltage N/A, VIN: VDD±0.3V; (3)Output Voltage N/A, Vout: VDD±0.3V; (4)Ambient Operating Temperature, Tamb: 0 to +70℃; (5)Storage Temperature, Ts: –65 to +150℃; (6)Lead Temperature (5 sec) PQFP N/A, TL: +280℃.
Features
Features: (1)Programmable Quality Box; (2)Industrial Temperature Range (ADV612); (3)Hardware Frame Rate Reduction; (4)100% Bitstream Compatible with the ADV601 and ADV601LC; (5)Precise Compressed Bit Rate Control; (6)Field Independent Compression; (7)8-Bit Video Interface Supports CCIR-656 and Multiplexed Philips Formats; (8)General Purpose 16- or 32-Bit Host Interface with 512 Deep 32-Bit FIFO; (9)Compression Ratios from Visually Loss-Less to 7500:1; (10)Visually Loss-Less Compression At 4:1 on Natural Images (Typical).
