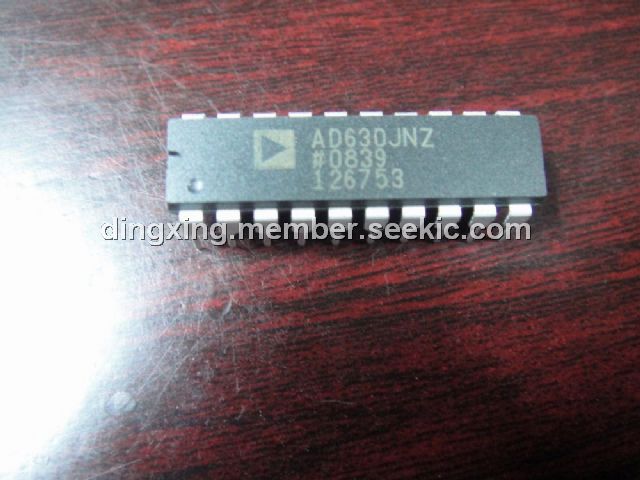

AD630JNZ

Balanced Modulator, DIP, 350 kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: AD630JNZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-25

From Other Seller

Part Number:AD630JNZ
US $1.00 - 10.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

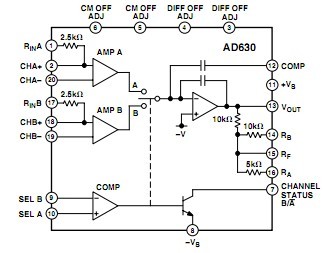

The AD630JNZ is a high precision balanced modulator which combines a flexible commutating architecture with the accuracy and temperature stability afforded by laser wafer trimmed thin-film resistors. Its signal processing applications include balanced modulation and demodulation, synchronous detection, phase detection, quadrature detection, phase sensitive detection, lock-in amplification and square wave multiplication.

Parametrics

AD630JNZ absolute maximum ratings: (1)Supply Voltage: ± 18 V; (2)Internal Power Dissipation: 600 mW; (3)Output Short Circuit to Ground: Indefinite; (4)Storage Temperature, Ceramic Package: –65℃ to +150℃; (5)Storage Temperature, Plastic Package: –55℃ to +125℃; (6)Lead Temperature Range (Soldering, 10 sec ): +300℃; (7)Max Junction Temperature: +150℃.

Features

AD630JNZ features: (1)Recovers Signal from +100 dB Noise; (2)2 MHz Channel Bandwidth; (3)45 V/μs Slew Rate; (4)–120 dB Crosstalk @ 1 kHz; (5)Pin Programmable Closed Loop Gains of ±1 and ±2; (6)0.05% Closed Loop Gain Accuracy and Match; (7)100 μV Channel Offset Voltage (AD630BD); (8)350 kHz Full Power Bandwidth; (9)Chips Available.
