PSOT36C-LF-T7

500 WATT, transient voltage suppressor (TVS) array, SOT-23, 3V to 36V, Low Clamping Voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: PSOT36C-LF-T7

Brand:: Protek Devices - ProTek | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-11

From Other Seller

Part Number:PSOT36C-LF-T7
US $1.00 - 10.00
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

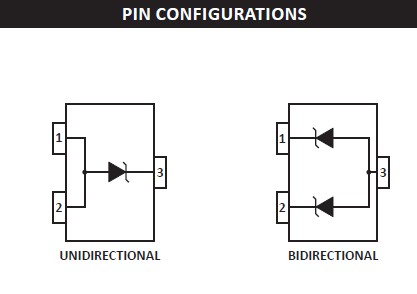

The PSOT36C-LF-T7 is a transient voltage suppressor (TVS) array, designed for power or data line applications that provide protection against ESD, tertiary lightning and switching transients. This series offers low clamping voltage for the protection of sensitive interfaces. The PSOT36C-LF-T7 has a peak pulse power of 500 Watts for an 8/20μs waveshape and is available in either a bidirectional or unidirectional configuration. This device meets the IEC 61000-4-2, 61000-4-4 and IEC 61000-4-5 requirements. The applications of the PSOT36C-LF-T7 include: (1)RS-232, RS-422 & RS-423; (2)Cellular Phones; (3)Controlling & Monitoring Systems; (4)Handheld Devices; (5)Wireless Bus Protection.

Parametrics

PSOT36C-LF-T7 characteristics: (1)Peak Pulse Power (tp = 8/20μs), PPP: 500 Watts; (2)Operating Temperature, TL: -55 to 150 ℃; (3)Storage Temperature, TSTG: -55 to 150 ℃; (4)Forward Voltage @ 100mA, 300μs, Square Wave, VF: 1.5 Volts.

Features

PSOT36C-LF-T7 features: (1)Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV; (2)Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns; (3)Compatible with IEC 61000-4-5 (Surge): 24A, 8/20us - Level 2(Line-Ground) & Level 3 (Line-Line); (4)500 Watts Peak Pulse Power per Line(tp = 8/20us); (5)Low Clamping Voltage; (6)Bidirectional and Unidirectional Configurations; (7)Available in Multiple Voltages Ranging from 3V to 36V; (8)RoHS Compliant; (9)REACh Compliant.
