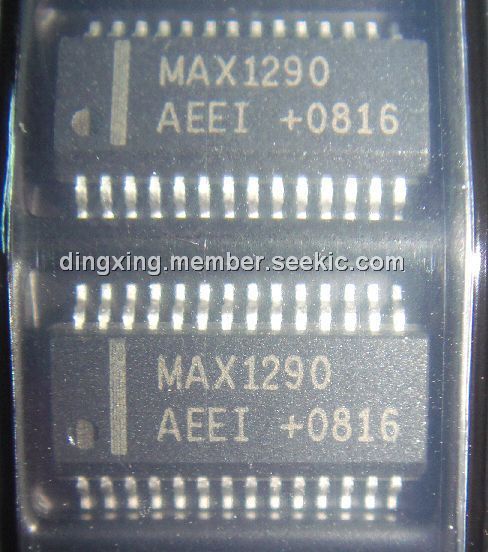

MAX1290AEEI

12-bit ADC, 24-Pin QSOP, +5V Single-Supply

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~10.00

PartNumber:: MAX1290AEEI

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-06

From Other Seller

Part Number:MAX1290AEEI
US $0.10 - 10.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

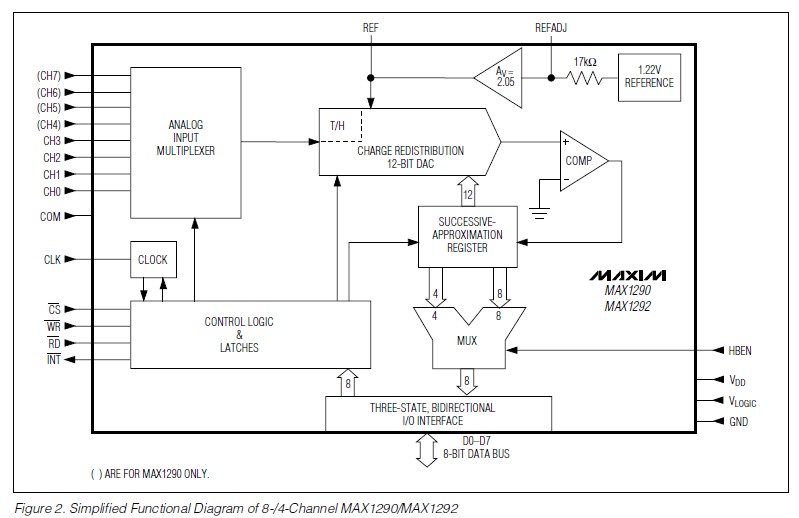

The MAX1290AEEI low-power, 12-bit analog-todigital converter (ADC) features a successive-approximation ADC, automatic power-down, fast wake-upm(2μs), an on-chip clock, +2.5V internal reference, and a high-speed, byte-wide parallel interface. The device operates with a single +5V analog supply and feature a
VLOGIC pin that allows them to interface directly with a +2.7V to +5.5V digital supply. Power consumption is only 10mW

Parametrics

Absolute maximum ratings: (1)VDD to GND: -0.3V to +6V; (2)VLOGIC to GND: -0.3V to +6V; (3)CH0–CH7, COM to GND: -0.3V to (VDD + 0.3V); (4)REF, REFADJ to GND: -0.3V to (VDD + 0.3V); (5)Digital Inputs to GND: -0.3V to +6V; (6)Digital Outputs (D0–D11, INT) to GND: -0.3V to (VLOGIC + 0.3V); (7)Continuous Power Dissipation (TA = +70℃): 24-Pin QSOP (derate 9.5mW/℃ above +70℃): 762mW; 28-Pin QSOP (derate 8.00mW/℃ above +70℃): 667mW; (8)Operating Temperature Ranges: MAX1290_C_ _/MAX1292_C_ _: 0℃ to +70℃; MAX1290_E_ _/MAX1292_E_ _ : -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.

Features

Features: (1)12-Bit Resolution, ±0.5 LSB Linearity; (2)+5V Single-Supply Operation; (3)User-Adjustable Logic Level (+2.7V to +5.5V); (4)Internal +2.5V Reference; (5)Software-Configurable Analog Input Multiplexer: 4-Channel Single-Ended/2-Channel Pseudo-Differential ; (6)Software-Configurable Unipolar/Bipolar Analog Inputs; (7)Low Current: 2.5mA (400ksps); 1.0mA (100ksps); 400μA (10ksps); 2μA (Shutdown); (8)Internal 6MHz Full-Power Bandwidth Track/Hold; (9)Byte-Wide Parallel (8 + 4) Interface; (10)Small Footprint: 24-Pin QSOP.
