Product Summary

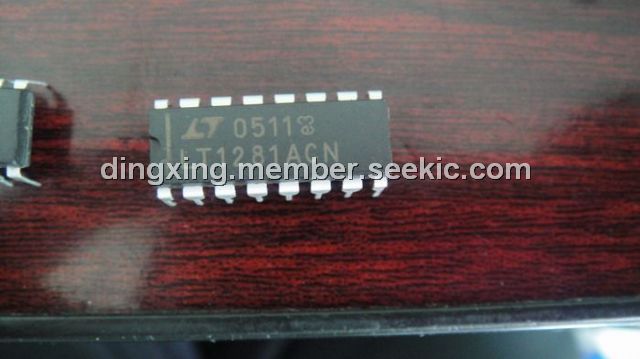

The LT1281ACN is a dual RS232 driver/receiver pairs with integral charge pump to generate RS232 voltage levels from a single 5V supply. New ESD structures on the chip allow the LT1281ACN to survive multiple ±10kV strikes, eliminating the need for costly TransZorbs on the RS232 line pins. The LT1281ACN is fully compliant with EIA RS232 standards. Driver outputs are protected from overload, and can be shorted to ground or up to ±30V without damage. It is available in 16-pin DIP and SO packages. During shutdown or power-off conditions, driver and receiver outputs are in a high impedance state, allowing line sharing. The applications of the LT1281ACN are Portable Computers, Battery-Powered Systems, Power Supply Generator, Terminals, Modems.
Parametrics
LT1281ACN absolute maximum ratings: (1)Supply Voltage (VCC): V+:6V, V–:13.2V; (2)Input Voltage: Driver:V– to V+, Receiver:–30V to 30V, ON/OFF:–0.3V to 12V; (3)Output Voltage: Driver: V+ -30V to V– + 30V, Receiver:-0.3V to VCC + 0.3V; (4)Short-Circuit Duration: V+ :30 sec, V–:30 sec; (5)Driver Output:Indefinite; (6)Receiver Output:Indefinite; (7)Operating Temperature Range:0℃ to 70℃; (8)Storage Temperature Range:– 65℃ to 150℃; (9)Lead Temperature (Soldering, 10 sec):300℃.
Features
LT1281ACN features: (1)10mA Max Supply Current; (2)ESD Protection over ±10kV; (3)Uses Small Capacitors: 0.1μF; (4)120kBaud Operation for RL = 3k, CL = 2500pF; (5)250kBaud Operation for RL = 3k, CL = 1000pF; (6)Outputs Withstand ±30V Without Damage; (7)CMOS Comparable Low Power: 40mW; (8)Operates from a Single 5V Supply; (9)Rugged Bipolar Design; (10)Outputs Assume a High Impedance State When Off or Powered Down; (11)Meets All RS232 Specifications; (12)Available With or Without Shutdown; (13)Absolutely No Latch-up; (14)Available in SO Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1281ACN |
|
IC DRVR/RCVR 5V RS232 DUAL 16DIP |
Data Sheet |
|
|
||||||||||
|
LT1281ACN#PBF |
|
IC DRVR/RCVR 5V RS232 DUAL 16DIP |
Data Sheet |
|
|
||||||||||
