Product Summary
The AD9446BSVZ-100 is a 16-bit, monolithic, sampling analog-to-digital converter (ADC) with an on-chip track-and-hold circuit. It is optimized for performance, small size, and ease of use. The AD9446BSVZ-100 operates up to a 100 MSPS, providing superior SNR for instrumentation, medical imaging, and radar receivers employing baseband (<100 MHz) IF frequencies.
Parametrics
AD9446BSVZ-100 absolute maximum ratings: (1)AVDD1, AGND: -0.3 V to +4 V; (2)AVDD2, AGND: -0.3 V to +6 V; (3)DRVDD, DGND: -0.3 V to +4 V; (4)AGND, DGND: -0.3 V to +0.3 V; (5)AVDD1, DRVDD: -4 V to +4 V; (6)AVDD2, DRVDD: -4 V to +6 V; (7)AVDD2, AVDD1:-4 V to +6 V; (8)D0± to D15±, DGND: –0.3 V to DRVDD + 0.3 V; (9)CLK+/CLK-, AGND: –0.3 V to AVDD1 + 0.3 V; (10)VIN+, VIN-, AGND: –0.3 V to AVDD2 + 0.3 V; (11)SENSE, AGND: –0.3 V to AVDD1 + 0.3 V; (12)REFT, REFB, AGND: –0.3 V to AVDD1 + 0.3 V.
Features
AD9446BSVZ-100 features: (1)100 MSPS guaranteed sampling rate (AD9446-100); (2)83.6 dBFS SNR with 30 MHz input (3.8 V p p input, 80 MSPS); (3)82.6 dBFS SNR with 30 MHz input (3.2 V p-p input, 80 MSPS); (4)89 dBc SFDR with 30 MHz input (3.2 V p-p input, 80 MSPS); (5)95 dBFS 2-tone SFDR with 9.8 MHz and 10.8 MHz (100 MSPS)60 fsec rms jitter; (6)2.0 V p-p to 4.0 V p-p differential full-scale input; (7)Buffered analog inputs; (8)LVDS outputs (ANSI-644 compatible) or CMOS outputs; (9)Data format select (offset binary or twos complement); (10)Output clock available; (11)3.3 V and 5 V supply operation.

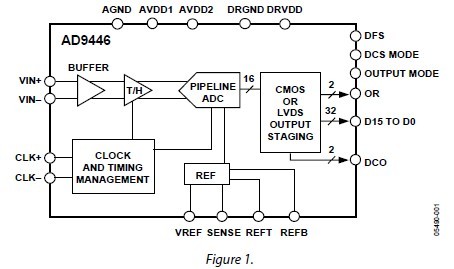

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

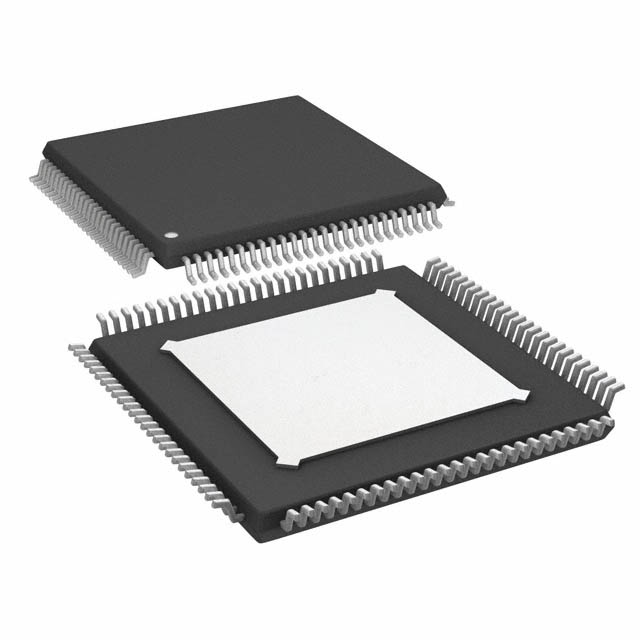

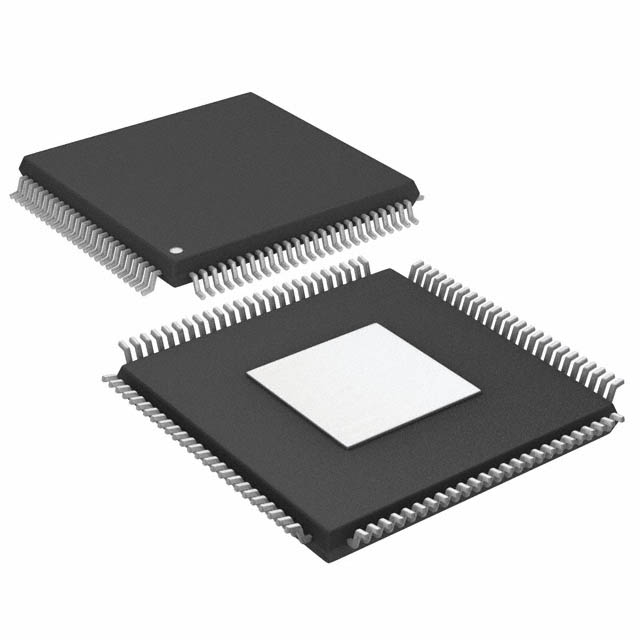

AD9446BSVZ-100 |
IC ADC 16BIT 100MSPS 100-TQFP |
Data Sheet |
|
|
||||||||||||||
