Product Summary
The AD847SQ represents a breakthrough in high speed amplifiers offering superior ac & dc performance and low power, all at low cost. The excellent dc performance is demonstrated by its ±5V specifications which include an open-loop gain of 3500 V/V (500Ω load) and low input offset voltage of 0.5 mV.
Parametrics
AD847SQ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation, Plastic (N): 1.2 Watts; Small Outline (R): 0.8 Watts; Cerdip (Q): 1.1 Watts; (3)Input Voltage: ±VS; (4)Differential Input Voltage: ±6 V; (5)Storage Temperature Range (Q): –65℃ to +150℃; (N, R): –65℃ to +125℃; (6)Junction Temperature: 175℃; (7)Lead Temperature Range (Soldering 60 sec): +300℃.
Features
AD847SQ features: (1)High Unity Gain BW: 50 MHz; (2)Low Supply Current: 5.3 mA; (3)High Slew Rate: 300 V/ms; (4)0.04% Differential Gain (NTSC and PAL); (5)0.19° Differential Phase (NTSC and PAL); (6)Drives Any Capacitive Load; (7)Fast Settling Time to 0.1% (10 V Step): 65 ns; (8)High Open-Loop Gain 5.5 V/mV (RLOAD = 1 kΩ); (9)Low Input Offset Voltage: 0.5 mV; (10)Specified for ±5 V and ±15 V Operation; (11)Available in a Wide Variety of Options; (12)Dual Version Available: AD827 (8 Lead); (13)Enhanced Replacement for LM6361; (14)Replacement for HA2544, HA2520/2/5 and EL2020.

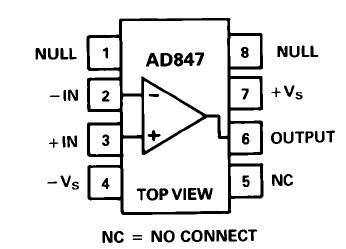

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD847SQ |
|
IC OPAMP GP 50MHZ LP 32MA 8CDIP |
Data Sheet |
|
|
||||||
 |
