Product Summary
The AD9882KST-140 offers designers the flexibility of an analog interface and Digital Visual Interface (DVI) receiver integrated on a single chip. Also included is support for High bandwidth Digital Content Protection (HDCP).
Parametrics
AD9882KST-140 absolute maximum ratings: (1)VD: 3.6 V; (2)VDD: 3.6 V; (3)Analog Inputs: VD to 0.0 V; (4)VREF: VD to 0.0 V; (5)Digital Inputs: 5 V to 0.0 V; (6)Digital Output Current: 20 mA; (7)Operating Temperature: –25℃ to +85℃; (8)Storage Temperature: –65℃ to +150℃; (9)Maximum Junction Temperature: 175℃; (10)Maximum Case Temperature: 150℃.
Features
AD9882KST-140 features: (1)140 MSPS Maximum Conversion Rate; (2)Programmable Analog Bandwidth; (3)0.5 V to 1.0 V Analog Input Range; (4)500 ps p p PLL Clock Jitter at 140 MSPS; (5)3.3 V Power Supply; (6)Full Sync Processing; (7)Midscale Clamping; (8)4:2:2 Output Format Mode; (9)DVI 1.0 Compatible Interface; (10)112 MHz Operation; (11)High Skew Tolerance of 1 Full Input Clock; (12)Sync Detect for Hot Plugging; (13)Supports High Bandwidth Digital Content Protection.

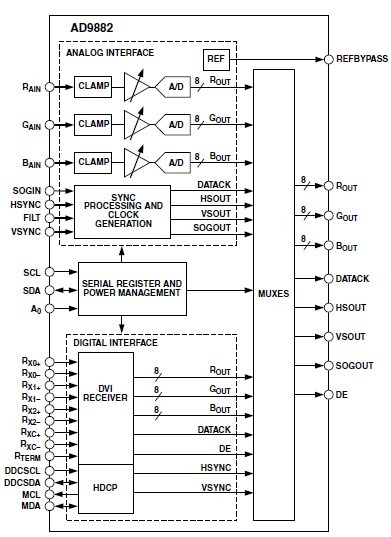

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

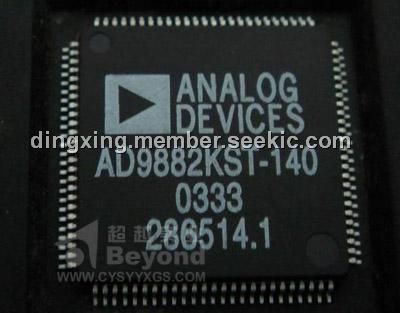

AD9882KST-140 |
Analog Devices Inc |
IC INTERFACE/HDMI 140MHZ 100LQFP |
Data Sheet |
Negotiable |
|
|||||
