Product Summary

The BU2500FV-E2 is a 12ch high-performance 8bit D/A converter which adopts the R-2R system. The BU2500FV-E2 utilizes a 5V supply voltage and the BU2501FV a 3V. Each channel output incorporates a Rail to Rail output type buffer amplifier. Three wire serial data input and cascade connection is possible. Small package (0.65mm pitch and 20pin) is adopted. The applications of the BU2500FV-E2 are CD-R, CD-RW, DVC, Digital camera and industrial equipment.

Parametrics

BU2500FV-E2 absolute maximum ratings: (1)Supply voltage:-0.3V to +6.0V; (2)Output voltage:-0.3V to +6.0V; (3)Power dissipation:400mW; (4)Upper reference voltage of D/A converter:-0.3V to +6.0V; (5)Input voltage:-0.3V to +6.0V; (6)Operating temperature:-25℃ to +85℃; (7)Storage temperature:-55℃ to +125℃.

Features

BU2500FV-E2 features: (1)High-performance 8bit 12-channel D/A converter adopting the R-2R system; (2)Output of each channel incorporates a Rail to Rail output type buffer amplifier; (3)Digital input compatible with TTL levels; (4)12bit 3wire serial data input, cascade connection is possible; (5)Buffer amplifier of each channel is highly-stable. Prevents oscillation even with capacitance loads.

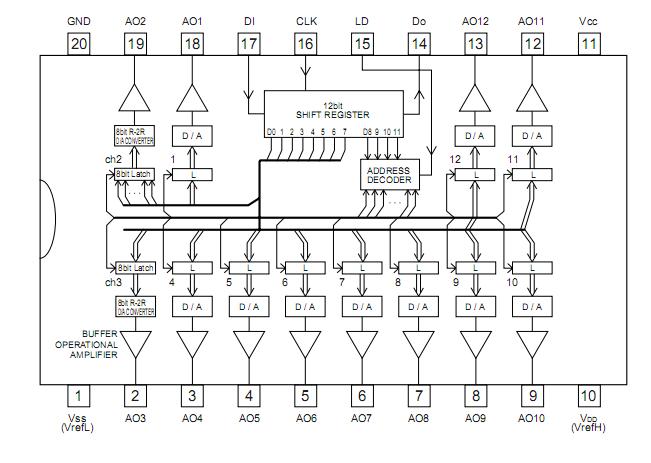

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BU2500FV-E2
BU2500FV-E2
ROHM Semiconductor
DAC (D/A Converters) 8 BIT D/A CONVERTER 20-Pin
Data Sheet
0-1: $2.74
1-25: $2.48
25-100: $2.08
100-500: $1.43
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BU2500FV
BU2500FV
Other

Data Sheet
Negotiable
BU2500FV-E2
BU2500FV-E2
ROHM Semiconductor
DAC (D/A Converters) 8 BIT D/A CONVERTER 20-Pin
Data Sheet
0-1: $2.74
1-25: $2.48
25-100: $2.08
100-500: $1.43
BU2501FV
BU2501FV
Other

Data Sheet
Negotiable
BU2505FV
BU2505FV
Other

Data Sheet
Negotiable
BU2506
BU2506
Other

Data Sheet
Negotiable
BU25065S-E3/45
BU25065S-E3/45
Vishay
Bridge Rectifiers 25 Amp 600 Volt
Data Sheet
0-460: $0.87
460-800: $0.75
800-1600: $0.67
