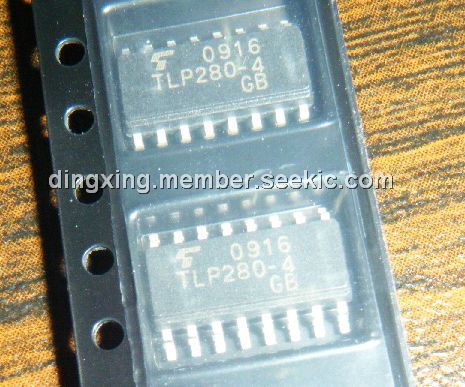

TLP280-4GB

Product Summary

The TLP280-4GB is a very small and thin coupler, suitable for surface mount assembly in applications such as PCMCIA fax modem, programmable controllers.TLP280-4GB consist of photo transistor, optically coupled to two gallium arsenide infrared emitting diode connected inverse parallel, and can operate directly by AC input current.

Parametrics

Absolute maximum ratings:(1)collector-emitter voltage:80 V:100V;(2)storage temperature range:-55 to 125℃;(3)emitter-collector voltage:7V;(4)total package power dissipation:170mW;(5)operating temperature:-55 to 100℃;(6)lead soldering temperature :260℃.Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress.It is the responsibility of the buyer, when utilizing TOSHIBA products, to comply with the standards of safety in making a safe design for the entire system, and to avoid situations in which a malfunction or failure of such TOSHIBA products could cause loss of human life, bodily injury or damage to property.

Features

Features:(1)collector-emitter voltage: 80 V (min) ;(2)current transfer ratio: 50% (min) ,rank GB: 100% (min) ;(3)isolation voltage: 2500 Vrms (min) ;(4)UL recognized: UL1577, file No. E67349.In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as set forth in the most recent TOSHIBA products specifications. Also, please keep in mind the precautions and conditions set forth in the "Handling Guide for Semiconductor Devices," or "TOSHIBA Semiconductor Reliability Handbook" etc.

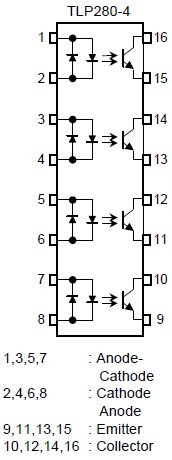

Diagrams
