Product Summary
The NCV1117STAT3G is low dropout positive voltage regulators that are capable of providing an output current that is in excess of 1.0 A with a maximum dropout voltage of 1.2 V at 800 mA over temperature. This series contains eight fixed output voltages of 1.5 V, 1.8 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V that have no minimum load requirement to maintain regulation. Also included is an adjustable output version that can be programmed from 1.25 V to 18.8 V with two external resistors. On chip trimming adjusts the reference/output voltage to within ±1.0% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The NCV1117STAT3G can operate with up to 20 V input. Devices are available in SOT−223 and DPAK packages.
Parametrics
Absolute maximum ratings:(1)Input Voltage: 20 V;(2)Output Short Circuit Duration: Infinite;(3)Maximum Die Junction Temperature Range: -55 to 150 °C;(4)Storage Temperature Range: -65 to 150 °C;(5)Operating Ambient Temperature Range: -40 to +125 °C.
Features
Features: (1)output current in excess of 1.0 A; (2)1.2 V maximum dropout voltage at 800 mA over temperature; (3)fixed output voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V; (4)adjustable output voltage option; (5)no minimum load requirement for fixed voltage output devices; (6)reference/output voltage trimmed to +/-1.0%; (7)current limit, safe operating and thermal shutdown protection; (8)operation to 20 V input; (9)NCV prefix for automotive and other applications requiring site and control changes; (10)Pb-free packages are available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

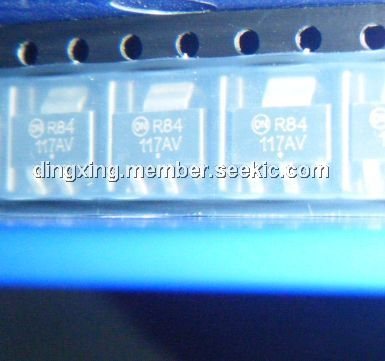

 NCV1117STAT3G |
ON Semiconductor |
Low Dropout (LDO) Regulators 1.25-18V ADJ 1.0A |
Data Sheet |
|
|
||||||||||||
