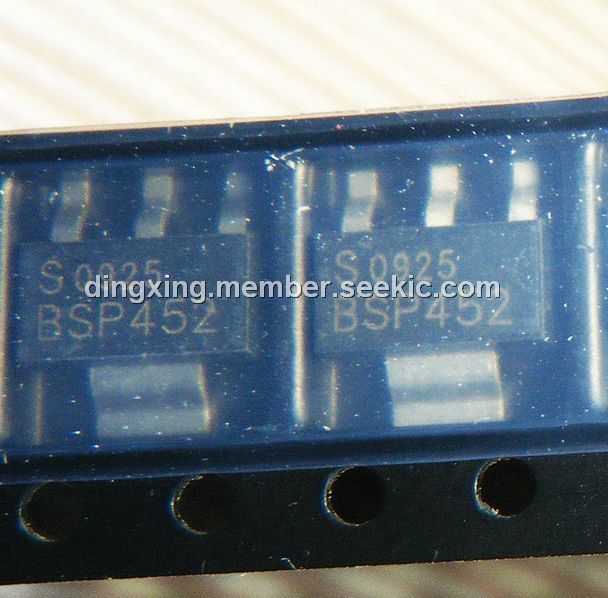

BSP452

N channel, vertical power FET, ground referenced CMOS, SOT-223, SC-73, TO-261AA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.00

PartNumber:: BSP452

Brand:: Infineon Technologies AG - Infineon | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-17

From Other Seller

Part Number:BSP452
US $0.50 - 1.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
AD595AD

US $7.00 - 9.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

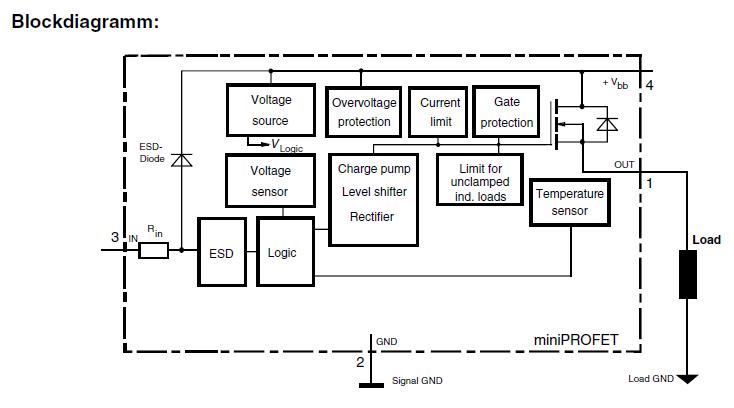

The BSP452 is N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS technology. Fully protected by embedded protection functions, the have high-side switch, short-circuit protection and input protection function. It is applied to μC compatible power switch for 12V DC grounded loads.

Parametrics

BSP452 absolute maximum ratings:(1)Supply voltage, Vbb: 40V; (2)Load current self-limited, IL: IL(SC)A; (3)Maximum input voltage, VIN: -5.0 to VbbV; (4)Maximum input current, IIN: ±5mA; (5)Inductive load switch-off energy dissipation, single pulse IL = 0.5A , TA = 150℃, EAS: 0.5J; (6)Load dump protection3) VLoadDump=UA+Vs RL= 24Ω RI=2Ω , td=400ms, IN= low or high, UA=13,5V; (7)VLoad dump: 60V; (8)Load dump protection3) VLoadDump=UA+Vs RL= 80Ω RI=2Ω , td=400ms, IN= low or high, UA=13,5V; (9)VLoad dump: 80V; (10)Electrostatic discharge capability (ESD)5) PIN 3, VESD:±1kV; (11)Electrostatic discharge capability (ESD)5) PIN 1,2,4, VESD: ±2kV; (12)Operating temperature range, Tj: -40 to +150℃; (13)Storage temperature range, Tstg: -55 to +150℃; (14)Max. power dissipation (DC)6) TA = 25 ℃, Ptot: 1.8W.

Features

BSP452 features:(1)High-side switch; (2)Short-circuit protection; (3)Input protection; (4)Overtemperature protection with hysteresis; (5)Overload protection; (6)Overvoltage protection; (7)Switching inductive load; (8)Clamp of negative output voltage with inductive loads; (9)Undervoltage shutdown; (10)Maximum current internally limited; (11)Electrostatic discharge (ESD) protection; (12)Reverse battery protection.
