Product Summary
The XC4005E-3TQ144C high-performance, high-capacity Field Programmable Gate Array (FPGA) provides the benefits of custom CMOS VLSI, while avoiding the initial cost, long development cycle, and inherent risk of a conventional masked gate array.
Parametrics
Parameters: (1)Category: Integrated Circuits (ICs); (2)Family: FPGAs (Field Programmable Gate Array); (3)Operating Temperature: 0℃ ~ 85℃; (4)Series: XC4000E/X; (5)Package / Case: 144-TQFP, 144-VQFP; (6)Voltage - Supply: 4.75 V ~ 5.25 V; (7)Number of I /O: 112; (8)Number of Logic Blocks/Elements: 196 ; (9)Number of Registers: 616 ; (10)Number of Gates: 5000.
Features
Features: (1)System-featured Field-Programmable Gate Arrays:Select-RAMTM memory: on-chip ultra-fast RAM with Synchronous write option and Dual-port RAM option; flexible function generators and abundant flip-flops; Dedicated high-speed carry logic; Internal 3-state bus capability; Eight global low-skew clock or signal distribution networks; (2)Flexible Array Architecture; (3)Low-power Segmented Routing Architecture; (4)Systems-oriented Features: IEEE 1149.1-compatible boundary scan; Individually programmable output slew rate; Programmable input pull-up or pull-down resistors; unlimited reprogrammability; (5)Read Back Capability: Program verification and internal node observability.

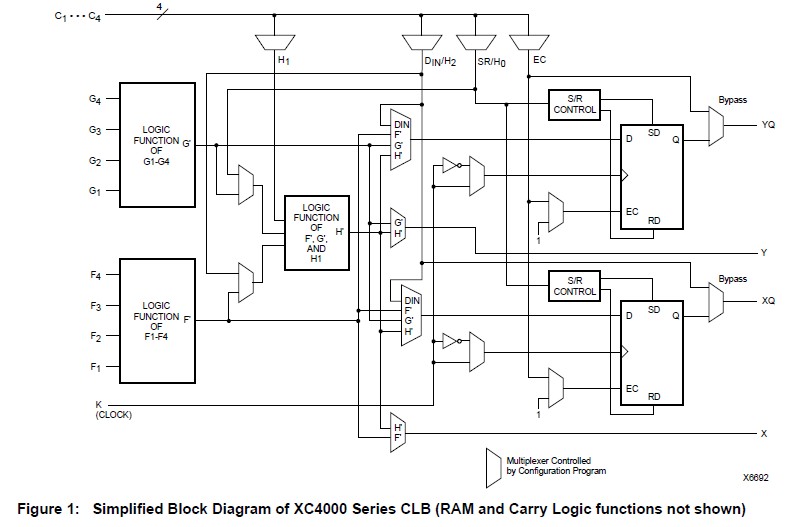

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC4005E-3TQ144C |
|
IC FPGA C-TEMP 5V 3-SPD 144-TQFP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
XC4000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XC4000A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XC4000E |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XC4000H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XC4000X |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XC4000XL |
Other |
|
Data Sheet |
Negotiable |
|
||||
