Product Summary

The AM26C31CNSR, AM26C31I, and AM26C31M are four complementary-output line drivers designed to meet the requirements of TIA/EIA-422-B and ITU (formerly CCITT). The 3-state outputs have high-current capability for driving balanced lines, such as twisted-pair or parallel-wire transmission lines, and they provide the high-impedance state in the power-off condition.

Parametrics

AM26C31CNSR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI: –0.5 V to VCC + 0.5 V; (3)Differential input voltage range, VID: –14 V to 14 V; (4)Output voltage range, VO: –0.5 V to 7 V; (5)Input or output clamp current, IIK or IOK: ±20 mA; (6)Output current, IO: ±150 mA; (7)VCC current: 200 mA; (8)GND current: –200 mA; (9)Continuous total power dissipation: See Dissipation Rating Table; (10)Storage temperature range, Tstg: –65℃ to 150℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

AM26C31CNSR features:(1)Meet or Exceed the Requirements of TIA/EIA-422-B and ITU Recommendation V.11; (2)Low Power, ICC = 100 mA Typ; (3)Operate From a Single 5-V Supply; (4)High Speed, tPLH = tPHL = 7 ns Typ; (5)Low Pulse Distortion, tsk(p) = 0.5 ns Typ; (6)High Output Impedance in Power-Off Conditions; (7)Improved Replacement for AM26LS31.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

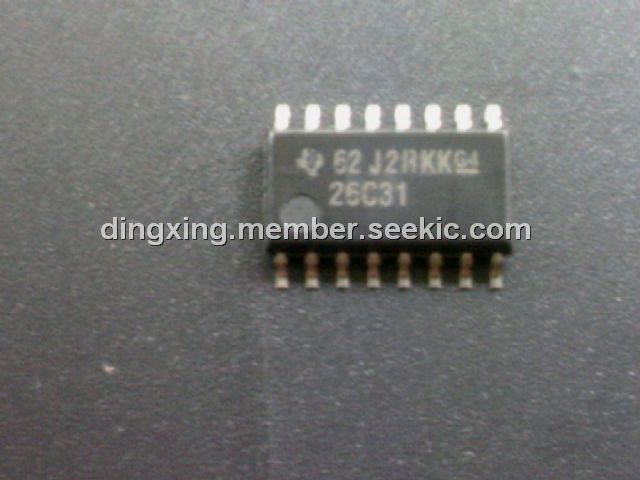

AM26C31CNSR
AM26C31CNSR

Texas Instruments

RS-422 Interface IC Quad Diff Line Drvr

Data Sheet

0-1: $0.70
1-25: $0.55
25-100: $0.48
100-250: $0.42
AM26C31CNSRE4
AM26C31CNSRE4

Texas Instruments

RS-422 Interface IC Quad Diff Line Drvr

Data Sheet

0-1550: $0.26
1550-2000: $0.25
2000-5000: $0.25
5000-10000: $0.24
AM26C31CNSRG4
AM26C31CNSRG4

Texas Instruments

RS-422 Interface IC Quad Diff Line Drvr

Data Sheet

0-1400: $0.28
1400-2000: $0.26
2000-5000: $0.25
5000-10000: $0.24
