BTS441T

Power Switch, TO-263, 21A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: BTS441T

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-27

From Other Seller

Part Number:BTS441T
US $1.00 - 10.00
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

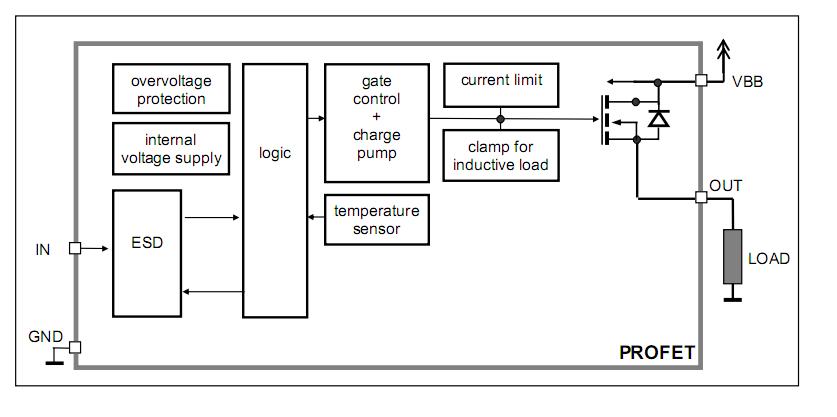

The BTS441T is a Smart Highside Power Switch. N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS/E technology. It provides embedded protective functions. The applications of the BTS441T are μC compatible power switch for 5V, 12 V and 24 VDC applications, All types of resistive, inductive and capacitve loads, Most suitable for loads with high inrush currents, so as lamps, Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS441T absolute maximum ratings: (1)Supply voltage:43V; (2)Supply voltage for full short circuit protection:34V; (3)Load dump protection:60V; (4)Load current:self-limited; (5)Operating temperature range:-40℃ to +150℃; (6)Storage temperature range:-55℃ to +150℃; (7)Power dissipation:125W; (8)Maximal switchable inductance, single pulse:2.1mH; (9)Electrostatic discharge capability (ESD): IN:1.0kV, Out to all other pins shorted:8.0kV; (10)Input voltage (DC):-10V to +16V; (11)Current through input pin (DC):±2.0mA.

Features

BTS441T features: (1)Very low standby current ; (2)Optimized static electromagnetic compatibility (EMC) ; (3)μC and CMOS compatible ; (4)Fast demagnetization of inductive loads ; (5)Stable behaviour at undervoltage ; (6)Short circuit protection ; (7)Current limitation ; (8)Overload protection ; (9)Thermal shutdown ; (10)Overvoltage protection (including load dump) with external GND-resistor ; (11)Reverse battery protection with external GND-resistor ; (12)Loss of ground and loss of Vbb protection ; (13)Electrostatic discharge (ESD) protection.
