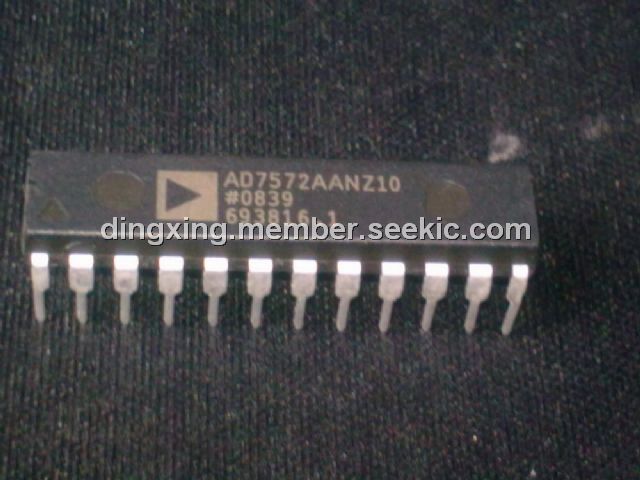

Product Summary
The AD7572AAN10 is an enhanced repalcement for the industry standard AD7572. Improvements include faster conversion times of 3μs for the AD7572AXX03 and 10μs for the AD7572AAN10. The required power supplies are 5V and 12V or 15V. Additional features are better offset and gain error specifications over the original AD7572. The AD7572AAN10 has a high speed digital interface with three-state data outputs and can operate under the control of standard microprocessor Read and decoded address signals. Interface timing is sufficiently fast to allow the AD7572AAN10 to operate with most microprocessors, with three state enable times of only 90ns and bus relinquish times of 75ns.
Parametrics
AD7572AAN10 absolute maximum ratings: (1)VDD to DGND: -0.3V to 7V; (2)VSS to DGND: 0.3V to -17V; (3)AGND to DGND: -0.3V to VDD+0.3V; (4)AIN to AGND: -15 to 15V; (5)Digital Input Voltage to DGND: -0.3V to VDD+0.3V; (6)Digital Output Voltage to DGND: -0.3V to VDD+0.3V; (7)Operating Temperature Range: -40℃ to 85℃; (8)Storage Temperature: -65℃ to 150℃; (9)Lead Temperature: 300℃; (10)Power dissipation to 75℃: 1000mW; (11)Derates above 75℃ by: 10mW/℃.
Features
AD7572AAN10 features: (1)Improved Ad7572; (2)10μs Conversion Time; (3)5V and 12V or 15V Power Supply Operation; (4)Better offset and Gain Error Specifications; (5)Extended Plastic Temperature Range: -40℃ to 85℃; (6)Low power: 100mW; (7)Small 24-Pin, 0.3 Wide DIP and SOIC DIP Packages.

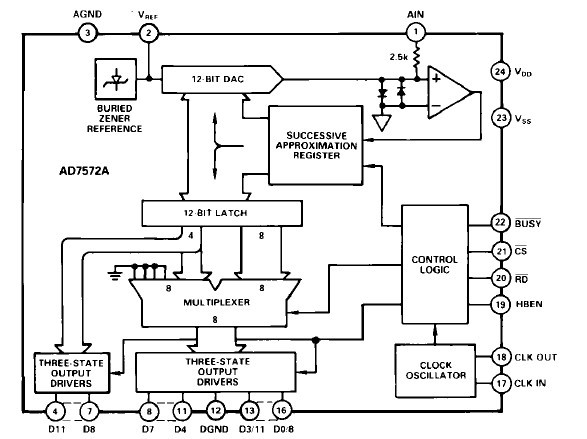

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD7572AAN10 |
Analog Devices Inc |
IC ADC 12BIT HS LC2MOS 24-DIP |
Data Sheet |
|
|
|||||||||||||
