Product Summary

The AD603AQ is a low noise, voltage-controlled amplifier for use in RF and IF AGC systems. It provides accurate, pin selectable gains of –11 dB to +31 dB with a bandwidth of 90 MHz or +9 dB to +51 dB with a bandwidth of 9 MHz. The AD603AQ applications: RF/IF AGC Amplifier, Video Gain Control, A/D Range Extension, Signal Measurement.

Parametrics

AD603AQ absolute maximum ratings: (1)Supply Voltage ±VS: ± 7.5 V; (2)Internal Voltage VINP (Pin 3): ± 2 V Continuous; (3)Internal Power Dissipation: 400 mW; (4)Operating Temperature Range: – 40℃ to +85℃; (5)Storage Temperature Range: –65℃ to +150℃; (6)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

AD603AQ features: (1)Linear in dB Gain Control; (2)–11 dB to +31 dB with 90 MHz Bandwidth; (3)+9 dB to +51 dB with 9 MHz Bandwidth; (4)Any Intermediate Range, e.g., –1 dB to +41 dB with 30 MHz Bandwidth; (5)Bandwidth Independent of Variable Gain; (6)±0.5 dB Typical Gain Accuracy; (7)MIL-STD-883 Compliant and DESC Versions Available.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

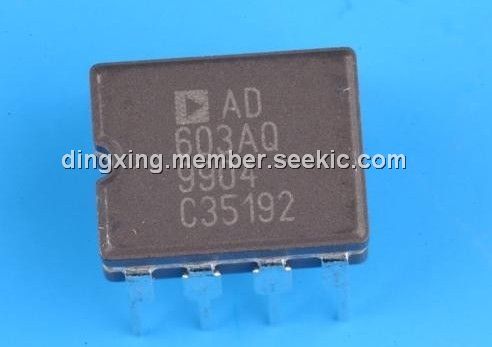

AD603AQ
AD603AQ


IC AMP VGA 90MHZ LN 50MA 8CDIP

Data Sheet

0-1: $7.20
1-10: $6.54
10-100: $5.56
100-250: $5.07
250-500: $4.75
500-1000: $4.36
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD600
AD600

Other


Data Sheet

Negotiable
AD600AQ
AD600AQ

Analog Devices Inc

IC OPAMP DUAL ADJ GAIN 16-CDIP

Data Sheet

1-25: $20.94
25-100: $19.45
100-250: $19.07
250-500: $18.70
500-1000: $18.47
1000-5000: $17.95
AD600AR
AD600AR


IC AMP VGA DUAL LN 50MA 16SOIC

Data Sheet

0-10: $22.37
AD600AR-REEL
AD600AR-REEL


IC AMP VGA DUAL LN 50MA 16SOIC

Data Sheet

0-1000: $17.24
AD600AR-REEL7
AD600AR-REEL7


IC AMP VGA DUAL LN 50MA 16SOIC

Data Sheet

0-400: $18.11
AD600ARZ
AD600ARZ


IC AMP VGA DUAL LN 50MA 16SOIC

Data Sheet

0-1: $21.17
1-10: $19.80
10-100: $17.16
100-250: $16.02
250-500: $15.26
