74LVTH16244A

Product Summary

The 74LVTH16244A is a 16-bit buffer and line driver. It is designed for low-voltage (3.3-V) V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. The 74LVTH16244A provides true outputs and symmetrical active-low output-enable ( OE ) inputs. It is fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the 74LVTH16244A when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

Parametrics

74LVTH16244A absolute maximum ratings: (1)Supply voltage rang:-0.5V to 4.6V; (2)Input voltage range:-0.5V to 7V; (3)Voltage range applied to any output in the high-impedance or power-off state:-0.5V to 7V; (4)Voltage range applied to any output in the high state:-0.5V to VCC+0.5V; (5)Current into any output in the low state:128V; (6)Current into any output in the high state:64V; (7)Input clamp current:-50mA; (8)Output clamp current:-50mA; (9)Package thermal impedance:63℃/W; (10)Storage temperature range:-65℃ to 150℃.

Features

74LVTH16244A features: (1)Members of the Texas Instruments Widebus Family; (2)State-of-the-Art Advanced BiCMOS Technology (ABT) Design for 3.3-V Operation and Low Static-Power Dissipation; (3)Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC ); (4)Support Unregulated Battery Operation Down to 2.7 V; (5)Typical V OLP (Output Ground Bounce) <0.8 V at VCC=3.3V, TA=25℃; (6)Ioff and Power-Up 3-State Support Hot Insertion; (7)Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors; (8)Latch-Up Performance Exceeds 500 mA Per JESD 17; (9)ESD Protection Exceeds JESD 22:2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A).

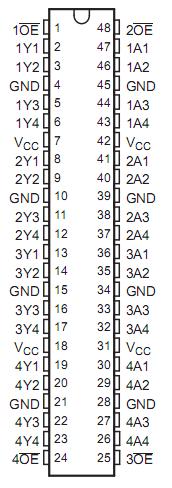

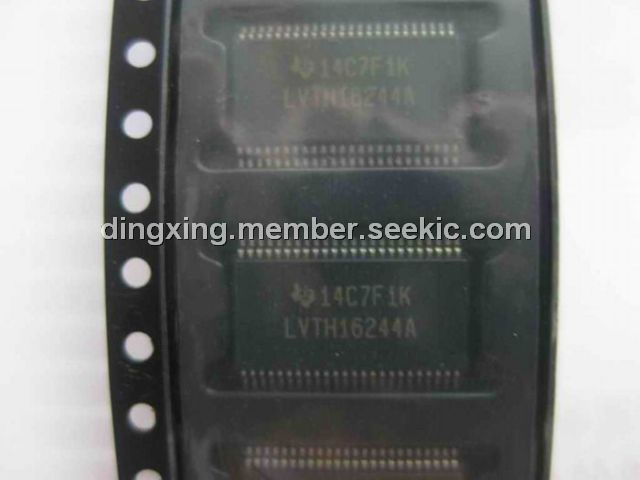

Diagrams
