Product Summary

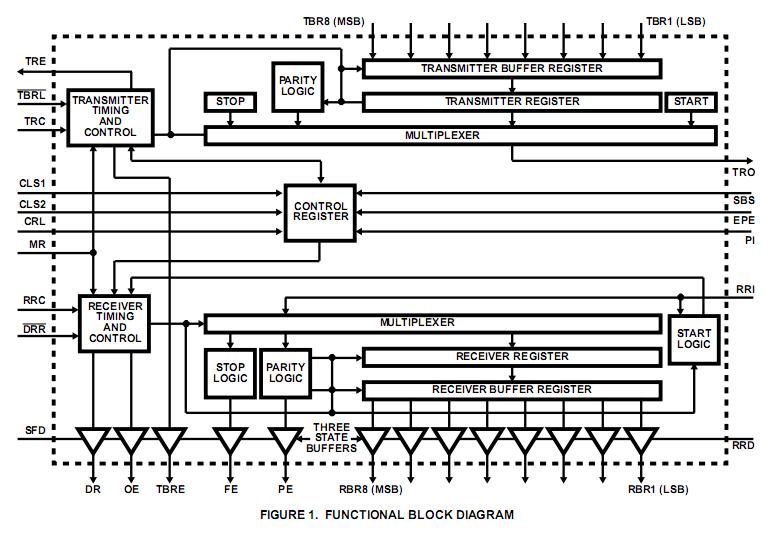

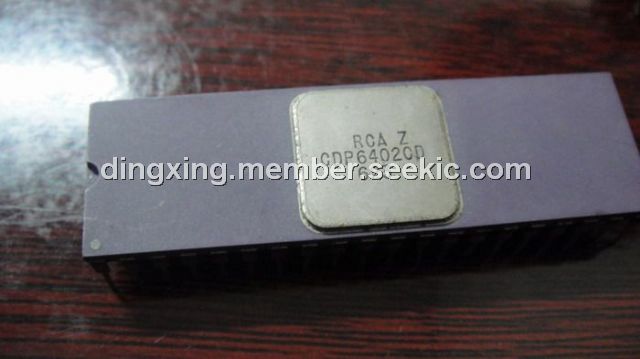

The CDP6402CD is a silicon gate CMOS Universal Asynchronous Receiver/Transmitter (UART) circuit for interfacing computers or microprocessors to asynchronous serial data channels. It is designed to provide the necessary formatting and control for interfacing between serial and parallel data channels. The CDP6402CD can be used in a wide range of applications including modems, printers, peripherals, video terminals, remote data acquisition systems, and serial data links for distributed processing systems. The CDP6402CD has a recommended operating voltage range of 4V to 6.5V.
Parametrics
CDP6402CD absolute maximum ratings: (1)DC Supply-Voltage Range:-0.5V to +7V; (2)Input Voltage Range, All Inputs:-0.5V to VDD +0.5V; (3)DC Input Current, Any One Input:±100μA; (4)Device Dissipation Per Output Transistor For TA = Full Package-Temperature Range(All Package Types):100mW; (5)Operating-Temperature Range (TA):-55℃ to +125℃.
Features
CDP6402CD features: (1)Low Power CMOS Circuitry:7.5mW (Typ) a 3.2MHz (Max Freq.) at VDD = 5V; (2)Baud Rate:DC to 200K Bits/s (Max) at:5V, 85℃, DC to 400K Bits/s (Max) at:10V, 85℃; (3)4V to 10.5 Operation; (4)Automatic Data Formatting and Status Generation; (5)Fully Programmable with Externally Selectable Word Length (5 - 8 Bits), Parity Inhibit, Even/Odd Parity, and 1, 1-1/2, or 2 Stop Bits; (6)Operating Temperature Range:-55℃ to +125℃; (7)Replaces Industry Type IM6402 and Compatible with HD6402.
