Product Summary

The 063EB is a DC/DC converter control circuit. The 063EB contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output switch. Output voltage is adjustable through two external resistors with a 2 % reference accuracy. Employing a minimum number of external components the 063EB is designed for step-down, step-up and voltage-inverting applications.

Parametrics

063EB absolute maximum ratings: (1)Power supply voltage:50 V; (2)Comparator input voltage range:-0.3 to 40 V; (3)Switch collector voltage:40 V; (4)Switch emitter voltage (VSWC = 40V):40 V; (5)Switch collector to emitter voltage:40 V; (6)Driver collector voltage:40 V; (7)Driver collector current:100 mA; (8)Switch current:1.5 A; (9)Power dissipation at TA = 25℃: for DIP-8:1.25W, for SO-8:0.625W; (10)Operating junction temperature:150℃; (11)Storage temperature range:-40℃ to 150℃; (12)Operating ambient temperature range: -40℃ to 125℃.

Features

063EB features: (1)Output switch current in excess of 1.5 A; (2)2 % reference accuracy; (3)Low quiescent current: 2.5 mA (typ.); (4)Operating from 3 V to 40 V; (5)Frequency operation to 100 kHz; (6)Active current limiting.

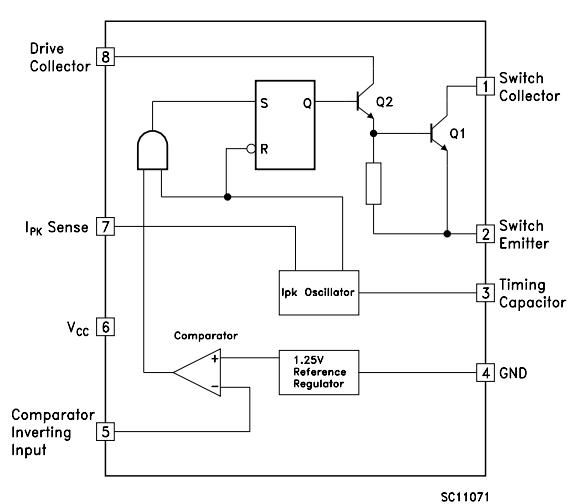

Diagrams
