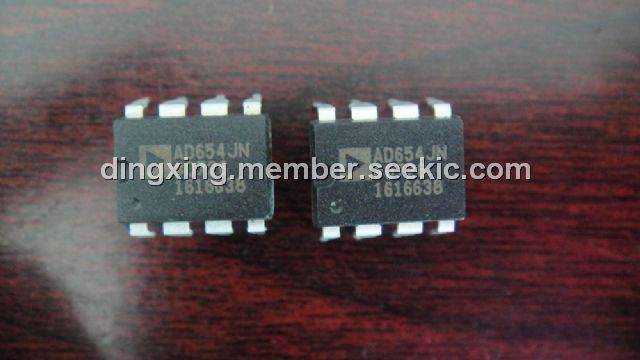

Product Summary

The AD654JN is a monolithic V/F converter consisting of an input amplifier, a precision oscillator system, and a high current output stage. A single RC network is all that is required to set up any full scale (FS) frequency up to 500 kHz and any FS input voltage up to ± 30 V. Linearity error is only 0.03% for a 250 kHz FS, and operation is guaranteed over an 80 dB dynamic range. The overall temperature coefficient (excluding the effects of external components) is typically ± 50 ppm/℃. The AD654JN operates from a single supply of 5 V to 36 V and consumes only 2.0 mA quiescent current.

Parametrics

AD654JN absolute maximum ratings: (1)Total Supply Voltage +VS to –VS: 36 V; (2)Maximum Input Voltage (Pins 3, 4) to –VS: –300 mV to +VS; (3)Maximum Output Current, Instantaneous: 50 mA; Sustained: 25 mA; (4)Logic Common to –VS: –500 mV to (+VS –4); (5)Storage Temperature Range: –65℃ to +150℃.

Features

AD654JN features: (1)Low Cost; (2)Single or Dual Supply, 5 V to 36 V, 65 V to 618 V; (3)Full-Scale Frequency Up to 500 kHz; (4)Minimum Number of External Components Needed; (5)Versatile Input Amplifier; (6)Positive or Negative Voltage Modes; (7)Negative Current Mode; (8)High Input Impedance, Low Drift; (9)Low Power: 2.0 mA Quiescent Current; (10)Low Offset: 1 mV.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD654JN
AD654JN

IC V-F CONVERTER MONO 8-DIP
Data Sheet
0-50: $4.95
AD654JN/+
AD654JN/+
Analog Devices Inc
IC V-F CONV MONO 500KHZ 8-DIP
Data Sheet
1-50: $6.64
AD654JNZ
AD654JNZ

IC V-F CONVERTER MONO 8-DIP
Data Sheet
0-1: $5.40
1-10: $4.86
10-25: $4.43
25-100: $4.00
100-250: $3.67
250-500: $3.35
500-1000: $2.92
1000-2500: $2.88
AD654JNZ/+
AD654JNZ/+

IC CONV VOLT-FREQ 500KHZ 8DIP
Data Sheet
0-50: $7.04
