Product Summary

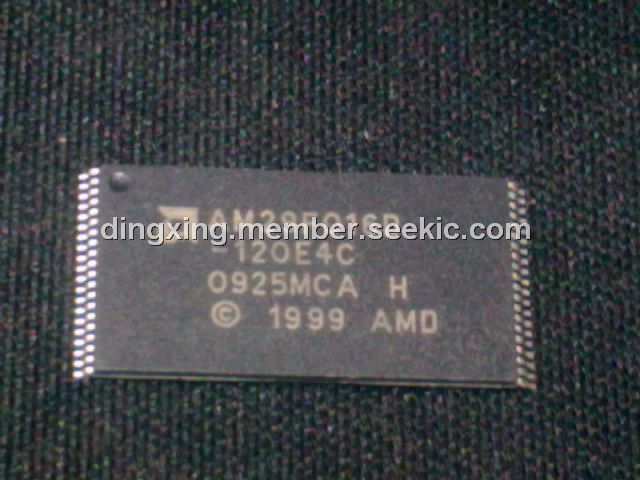

The AM29F016D-120E4C is a 16 Mbit, 5.0 volt-only Flash memory organized as 2,097,152 bytes. The 8 bits of data appear on DQ0–DQ7. The AM29F016D-120E4C is offered in 48-pin TSOP, 40-pin TSOP, and 44-pin SO packages. AM29F016D-120E4C is also available in Known Good Die (KGD)form.
Parametrics
AM29F016D-120E4C absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65℃ to +125℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground VCC: –2.0 V to 7.0 V; A9, OE#, RESET: –2.0 V to 12.5 V; All other pins: –2.0 V to 7.0 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29F016D-120E4C features: (1)5.0 V ± 10%, single power supply operation; (2)Manufactured on 0.23 μm process technology; (3)Low power consumption; (4)Unlock Bypass Program Command; (5)Minimum 1,000,000 program/erase cycles per sector guaranteed; (6)20-year data retention at 125℃.
Diagrams
 |
