Product Summary

The 47N60C2 is a Cool MOSTM Power Transistor.

Parametrics

47N60C2 absolute maximum ratings: (1)Continuous drain current: TC = 25℃:47A, TC = 100℃:30A; (2)Pulsed drain current, tp limited by Tjmax:94A; (3)Avalanche energy, single pulse ID=10A, VDD=50V:1800 mJ; (4)Avalanche energy, repetitive tAR limited by Tjmax, ID=20A, VDD=50V:1mJ; (5)Avalanche current, repetitive tAR limited by Tjmax:20 A; (6)Reverse diode dv/dt, IS=47A, VDS＜VDD, di/dt=100A/μs, Tjmax=150℃:6 V/ns; (7)Gate source voltage:±20 V; (8)Power dissipation, TC = 25℃:415 W; (9)Operating and storage temperature:-55℃ to +150℃.

Features

47N60C2 features: (1)New revolutionary high voltage technology; (2)Worldwide best RDS(on) in TO 247; (3)Ultra low gate charge; (4)Periodic avalanche rated; (5)Extreme dv/dt rated; (6)Ultra low effective capacitances; (7)Improved noise immunity.

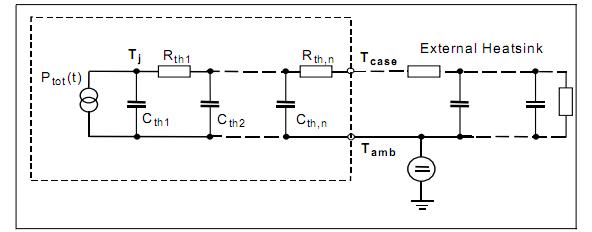

Diagrams
