Product Summary
The ADM202J is a two-channel RS-232 line driver/receiver pair designed to operate from a single +5 V power supply. A highly efficient on-chip charge pump design permits RS-232 levels to be developed using charge pump capacitors as small as 0.1 μF.
Parametrics
ADM202J absolute maximum ratings: (1)VCC: +6 V; (2)V+: (VCC – 0.3 V) to +14 V; (3)V–: +0.3 V to –14 V; (4)Input Voltages, TIN : –0.3 V to (VCC + 0.3 V); RIN: ±30 V; (5)Output Voltages, TOUT: (V+, +0.3 V) to (V–, – 0.3 V); ROUT: –0.3 V to (VCC + 0.3 V); (6)Short Circuit Duration, TOUT: Continuous; (7)Thermal Impedance, N-16 DIP: 135℃/W; R-16N SOIC: 105℃/W; (8)ESD Rating: >2000 V.
Features
ADM202J features: (1)120 kB Transmission Rate; (2)ADM202: Small (0.1 mF) Charge Pump Capacitors; (3)ADM203: No External Capacitors Required; (4)Single 5 V Power Supply; (5)Meets EIA-232-E and V.28 Specifications; (6)Two Drivers and Two Receivers; (7)On-Board DC-DC Converters; (8)69 V Output Swing with +5 V Supply; (9)Low Power BiCMOS: 2.0 mA ICC; (10)630 V Receiver Input Levels.

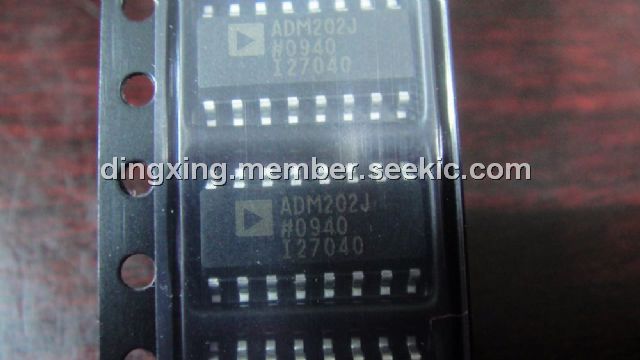

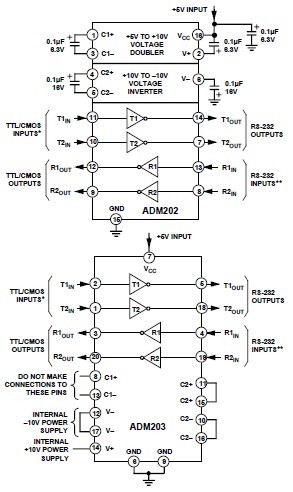

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM202JN |
|
IC TX/RX RS-232 5V 15KV 16DIP |
Data Sheet |
|
|
||||||||||||||||||||
|
ADM202JNZ |
|
IC TX/RX RS-232 5V 15KV 16DIP |
Data Sheet |
|
|
||||||||||||||||||||
 |
ADM202JRN |
|
IC TX/RX RS-232 5V 15KV 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
 |
ADM202JRN-REEL |
Analog Devices Inc. |
IC TXRX RS-232 5V HI-SP 16SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
ADM202JRN-REEL7 |
|
IC TX/RX RS-232 5V 15KV 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
ADM202JRNZ |
|
IC TX/RX RS-232 5V 15KV 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
ADM202JRNZ-REEL |
|
IC TXRX RS-232 5V HI-SP 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
ADM202JRNZ-REEL7 |
|
IC TXRX RS232 5V 15KV 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
