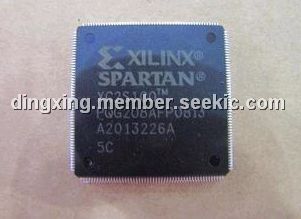

XC2S100-5PQG208C

Spartan-II Field-Programmable Gate Array, –0.5 to 3.0 V, QFP, four DLLs, SelectRAM hierarchical memory

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: XC2S100-5PQG208C

Brand:: Xilinx, Inc - Xilinx | Pack: QFP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-11

From Other Seller

Part Number:XC2S100-5PQG208C
US $1.00 - 10.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The XC2S100-5PQG208C Spartan-II Field-Programmable Gate Array gives users high performance, abundant logic resources, and a rich feature set, all at an exceptionally low price. The XC2S100-5PQG208C offers densities ranging from 15,000 to 200,000 system gates. System performance is supported up to 200 MHz. Features include block RAM (to 56K bits), distributed RAM (to 75,264 bits), 16 selectable I/O standards, and four DLLs. Fast, predictable interconnect means that successive design iterations continue to meet timing requirements.

Parametrics

XC2S100-5PQG208C absolute maximum ratings: (1)Supply voltage relative to GND: –0.5 to 3.0 V; (2)Supply voltage relative to GND: –0.5 to 4.0 V; (3)Input reference voltage: –0.5 to 3.6 V; (4)Input voltage relative to GND: 5V tolerant I/O: –0.5 to 5.5 V, No 5V tolerance: –0.5 to VCCO+0.5 V; (5)Voltage applied to 3-state output: 5V tolerant I/O: –0.5 to 5.5 V, No 5V tolerance: –0.5 to VCCO+0.5 V; (6)Storage temperature (ambient): –65 to +150 ℃; (7)Junction temperature: +125 ℃.

Features

XC2S100-5PQG208C features: (1)Second generation ASIC replacement technology: Densities as high as 5,292 logic cells with up to 200,000 system gates, Streamlined features based on Virtex FPGA architecture; (2)System level features: SelectRAM hierarchical memory: 16 bits/LUT distributed RAM, Configurable 4K bit block RAM, Fast interfaces to external RAM, Fully PCI compliant, Low-power segmented routing architecture, Full readback ability for verification/observability.
