TLE6282G

dual half bridge driver, SOP, Short circuit protection, 1 bit diagnosis, -4 to 60 V, Low EMC sensitivity

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: TLE6282G

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-11

From Other Seller

Part Number:TLE6282G
US $1.00 - 10.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
STK795-820

US $20.00 - 25.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

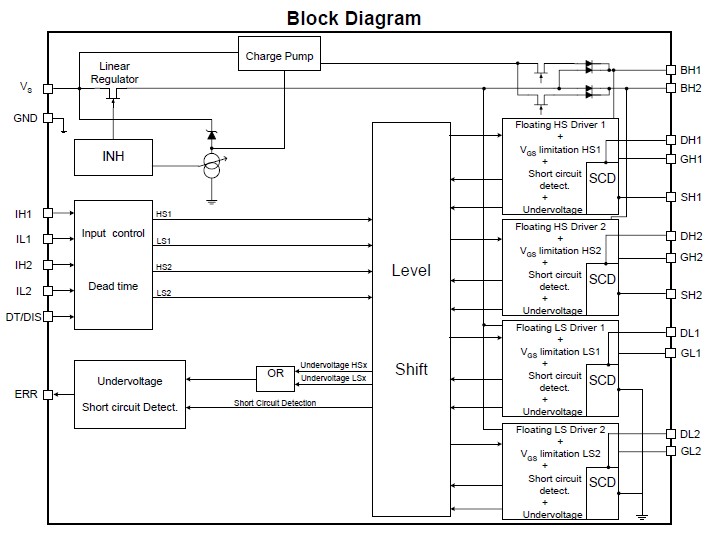

The TLE6282G is a dual half bridge driver IC for MOSFET power stages with multiple protection functions. It is dedicated for DC-brush high current motor bridges in PWM control mode and adapted for use in injector and valve applications for 12, 24 and 42V powernet applications. The TLE6282G is used as four fold lowside driver for unipolar 4 phase motor drives. The two half bridges can operate independently. The two half bridges can even operate at different supply voltages.

Parametrics

TLE6282G maximum ratings: (1)Supply voltage, VS: -4 to 60 V; (2)Operating temperature range, Tj: -40 to 150℃; (3)Storage temperature range, Tstg: -55 to 150℃; (4)Max. voltage range at Ixx; DT/DIS: -1 to 6 V; (5)Max. voltage range at ERR: -0.3 to 6 V; (6)Max. voltage range at BHx, VBHx: -0.3 to 90 V; (7)Max. voltage range at DHx, VDHx: -4 to 75 V; (8)Max. voltage range at GHx, VGHx: -7 to 86 V; (9)Max. voltage range at SHx, VSHx: -7 to 75 V; (10)Max. voltage range at DLx, VDLx: -7 to 75 V; (11)Max. voltage range at GLx, VGLx: -2 to 12 V; (12)Max. voltage difference BHx - SHx, VBHx-VSHx: -0.3 to 17 V; (13)Max. voltage difference GHx – SHx; GLx, VGxx-VSxx: -0.3 to 11 V; (14)Power dissipation (DC) @ TA=125℃ / min.footprint, Ptot: 0.33 W; (15)Power dissipation (DC) @ TA=85℃ / min.footprint, Ptot: 0.85 W.

Features

TLE6282G features: (1)Compatible to very low ohmic normal level input N-Channel MOSFETs; (2)Separate input for each MOSFET; (3)PWM frequency up to 50 kHz; (4)Operates down to 7.5V supply voltage; (5)Low EMC sensitivity and emission; (6)Adjustable dead time with shoot through protection; (7)Deactivation of dead time and shoot through protection possible; (8)Short circuit protection for each Mosfet; (9)Driver undervoltage shut down; (10)Reverse polarity protection for the driver IC; (11)Disable function; (12)Input with TTL characteristics; (13)1 bit diagnosis; (14)Integrated bootstrap diodes.
