Product Summary

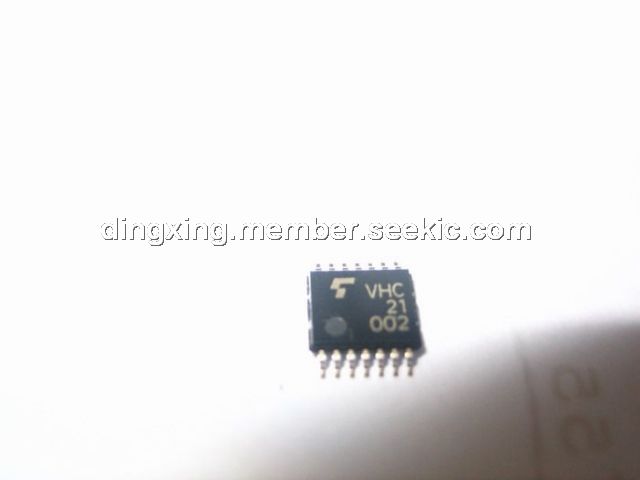

The TC74VHC21FT is an advanced high speed CMOS 4-INPUT AND GATE fabricated with silicon gate CZMOS technology. The TC74VHC21FT achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The internal circuit is composed of 4 stages including a buffer output, which provide high noise immunity and stable output. An input protection circuit ensures that 0 to 7V can be applied to the input pins without regard to the supply voltage. The TC74VHC21FT can be used to interface 5V to 3V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.
Parametrics
TC74VHC21FT absolute maximum ratings: (1)supply voltage range VCC: -0.5 to 7.0V; (2)DC input voltage VIN: - 0.5 to 7.0V; (3)DC output voltage VOUT: -0.5 to VCC+0.5V; (4)input diode current IIK: -20 mA ; (5)output diode current IOK: ±20mA; (6)DC Output current lOUT: ±25 mA ; (7)DC VCC/ground current ICC: ±50 mA ; (8)power dissipation PD: 180 mw ; (9)storage temperature Tstg: - 65 to 150℃.
Features
TC74VHC21FT features: (1)low power dissipation lpd =2μA(Max.) at Ta =25℃; (2)high noise immunity: VNIL=VNIL=28% VCC(MIN); (3)power down protection is provided on all inputs; (4)balanced propagation delays tpLH=pHL; (5)wide operating voltage range VCC(opr) =2V~5.5V ; (6)pin and function compatible with 74ALS21.

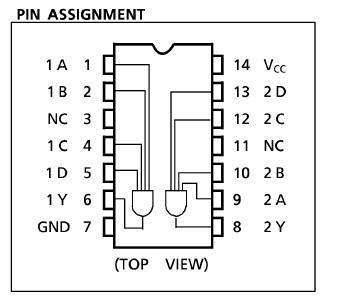

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC74VHC21FT(EL,M) |
|
IC GATE AND DUAL 4INPUT 14-TSSOP |
Data Sheet |
|
|
||||||
|
TC74VHC21FT(EL) |
|
IC GATE AND DUAL 4INPUT 14-TSSOP |
Data Sheet |
Negotiable |
|
||||||
