Product Summary

The SKY77518–11 is a transmit and receive front-end module (FEM) with Integrated Power Amplifier Control (iPAC) for dual-band cellular handsets comprising GSM900 and DCS1800 operation. Designed in a low profile, compact form factor, the SKY77518–11 offers a complete Transmit VCO-to-Antenna and Antenna-to-Receive SAW filter solution. The FEM also supports Class 12 General Packet Radio Service (GPRS) multi-slot operation. The two Heterojunction Bipolar Transistor (HBT) PA blocks are fabricated onto a single Gallium Arsenide (GaAs) die.

Features

SKY77518-11 features: (1)High efficiency; (2)Low transmit supply current; (3)Internal ICC sense resistor for iPAC; (4)Closed loop iPAC; (5)50 Ω matched Input/Output; (6)TX–VCO-to-antenna and antenna-to-RX-SAW filter RF interface; (7)TX harmonics below –33dBm; (8)PHEMT RF switches afford high linearity, low insertion loss, and less than 20 μA supply current in receive; (9)modes; (10)Small outline: 6 x 8 mm; (11)Low profile: 1.1 mm; (12)Compatible with multiple logic families; (13)Low APC current: 25 μA.

Diagrams

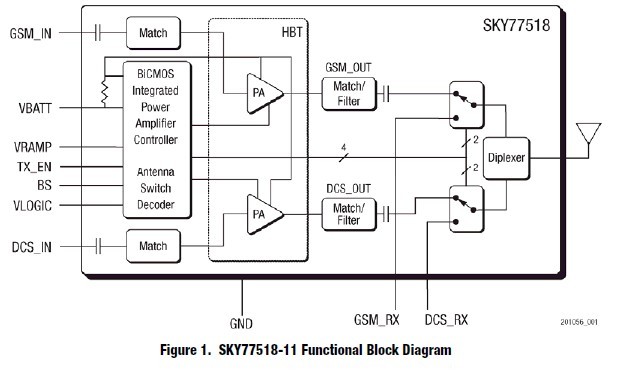

SKY77518-11 Functional Block Diagram

SKY72300-21
SKY72300-21
Skyworks Solutions, Inc.
Clock Synthesizer / Jitter Cleaner 2.1GHz 100Hz step Freq. Synthesizer
Data Sheet
