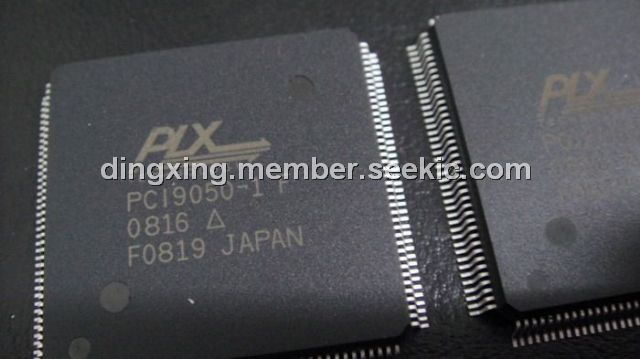

PCI9050-1F

Bus Target Interface Chip, QFP, 132 Mbytes/second, Low power CMOS, 5 local bus address spaces

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: PCI9050-1F

Brand:: PLX Technology - PLX | Pack: QFP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-08

From Other Seller

Part Number:PCI9050-1F
US $1.00 - 10.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

As PCI gains momentum as the preeminent backplane standard, suppliers of add in cards of all types are rushing to get PCI versions to market. Continuing its drive to provide single-chip PCI interfaces for every market, PLX offers designers its PCI9050-1F Bus Target Interface Chip for low cost adapters. The PCI9050-1F provides a compact, high performance PCI bus target (slave) interface for adapter boards. It enables rapid, low cost conversion of Industry Standard Architecture (ISA) adapters to the PCI bus. The PCI9050-1F accelerates I/O data movements on adapter boards from ISA nominal bus speed of 8 MHz, 5 Mbytes/second to PCI 33 MHz, 132 Mbytes/second data transfer capability.

Parametrics

PCI9050-1F absolute maximum ratings: (1)Maximum operating temperature: + 125℃; (2)Minimum operating temperature: -40℃.

Features

PCI9050-1F features: (1)PCI Specification 2.1 Compliant Target Interface Chip supporting low cost slave adapters; (2)Up to five local bus address spaces and four chip selects; (3)Bi-directional FIFO for zero wait-state burst operation; (4)PCI Bus transfers up to 132 Mbytes/second; (5)Supports multiplexed and non-multiplexed 8-, 16-, and 32-bit generic local buses; (6)Local bus runs asynchronously to the PCI clock; (7)Supports Big/Little Endian byte conversion; (8)Low power CMOS in 160-pin PQFP package.

Diagrams
