HSSR-7111

Product Summary

The HSSR-7111 is single channel power MOSFET optocouplers, constructed in eight-pin, hermetic, dual-inline, ceramic packages. The devices operate exactly like a solid-state relay. The products are capable of operation and storage over the full military temperature range and may be purchased as a standard product (HSSR-7110), with full MIL-PRF-38534 Class H testing (HSSR-7111 and HSSR- 7112), with MIL-PRF-38534 Class E testing (Class K with exceptions) (HSSR-711E) or from the DSCC Standard Microcircuit Drawing (SMD) 5962-93140.

Parametrics

Absolute maximum ratings: (1)Storage Temperature Range, TS: -65 to +150℃; (2)Operating Ambient Temperature, TA: -55 to +125℃; (3)Junction Temperature, TJ: +150℃; (4)Operating Case Temperature, TC: +145℃; (5)Lead Solder Temperature (1.6 mm below seating plane): 260℃ for 10s; (6)Average Input Current, IF: 20mA; (7)Peak Repetitive Input Current (Pulse Width < 100 ms; duty cycle < 50%), IFPK: 40mA; (8)Peak Surge Input Current (Pulse Width < 0.2 ms; duty cycle < 0.1%), IFPK: 100mA; (9)Reverse Input Voltage, VR: 5V; (10)Average Output Current, Connection A, IO: 0.8A; (11)Average Output Current, Connection B, IO: 1.6A; (12)Single Shot Output Current of Connection A (Pulse width < 10 ms), IOPK: 5.0A; (13)Single Shot Output Current of Connection B (Pulse width < 10 ms), IOPK: 10.0A; (14)Output Voltage, Connection A, VO: -90 to 90V; (15)Output Voltage, Connection B, VO: -90 to 90V; (16)Average Output Power Dissipation: 800mW.

Features

Features: (1)Dual Marked with Device Part Number and DSCC Standard Microcircuit Drawing; (2)ac/dc Signal & Power Switching; (3)Compact Solid-State Bidirectional Switch; (4)Manufactured and Tested on a MIL-PRF-38534 Certified Line; (5)QML-38534; (6)MIL-PRF-38534 Class H; (7)Modified Space Level Processing Available (Class E); (8)Hermetically Sealed 8-Pin Dual In-Line Package; (9)Small Size and Weight; (10)Performance Guaranteed over -55°C to +125°C; (11)Connection A 0.8 A, 1.0 Ω; (12)Connection B 1.6 A, 0.25 Ω; (13)1500 Vdc Withstand Test Voltage; (14)High Transient Immunity; (15)5 Amp Output Surge Current.

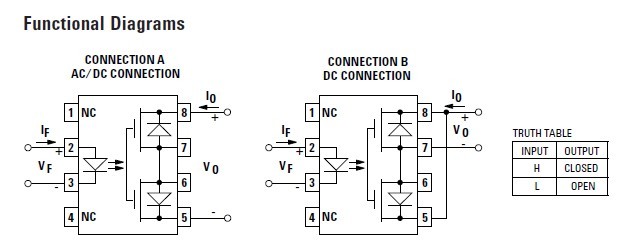

Diagrams
