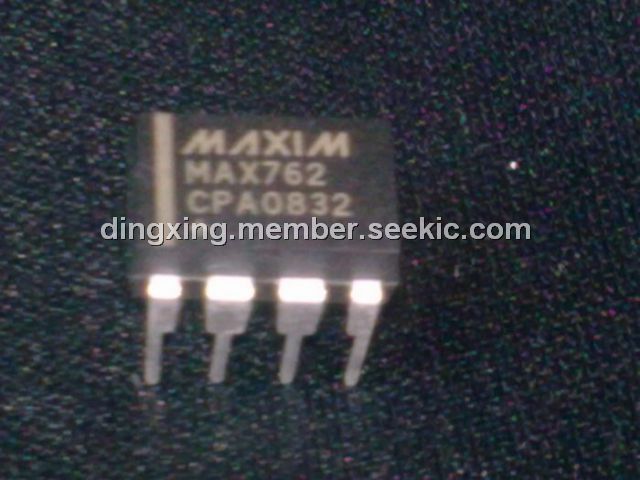

MAX762CPA

12V/15V or Adjustable, High-Efficiency, Low IQ, Step-Up DC-DC Converters, DIP, 110μA Max Supply Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: MAX762CPA

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-08

From Other Seller

Part Number:MAX762CPA
US $1.00 - 10.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX762CPA step-up switching regulators provide high efficiency over a wide range of load currents, delivering up to 150mA. A unique, current-limited pulse-frequency-modulated (PFM) control scheme gives the devices the benefits of pulse-width-modulated(PWM) converters (high efficiency with heavy loads), while using less than 110μA of supply current (vs. 2mA to 10mA for PWM converters). The result is high efficiency over a wide range of loads. The MAX762CPA input voltage range is 2V to 16.5V. Output voltages are preset to 12V (MAX761) and 15V (MAX762), or they can be set with two external resistors. With a 5V input, the MAX761 guarantees a 12V, 150mA output. Its high efficiency, low supply current, fast start-up time, SHDN controlling capability, and small size make the MAX761 ideal for powering flash memory.

Parametrics

MAX762CPA absolute maximum ratings: (1)Supply Voltage V+ to GND: -0.3V to 17V; (2)REF, LBO, LBI, SHDN, FB: -0.3V to (V+ + 0.3V); (3)LX: -0.3V to 17V; (4)LX Peak Current: 1.5A; (5)LBO Current: 5mA; (6)Continuous Power Dissipation (TA = +70℃), Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; SO (derate 5.88mW/℃ above +70℃): 471mW; CERDIP (derate 8.00mW/℃ above +70℃): 640mW; (7)Operating Temperature Ranges: MAX76_C_A: 0℃ to +70℃; MAX76_E_A: -40℃ to +85℃; MAX76_MJA: -55℃ to +125℃; (8)Junction Temperatures: MAX76_C_A/E_A: +150℃; MAX76_MJA: +175℃; (9)Storage Temperature Range: -65℃ to +160℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX762CPA features: (1)High Efficiency for a Wide Range of Load Currents; (2)12V/150mA Flash Memory Programming Supply; (3)110μA Max Supply Current; (4)5μA Max Shutdown Supply Current; (5)2V to 16.5V Input Voltage Range; (6)12V (MAX761), 15V (MAX762) or Adjustable Output; (7)Current-Limited PFM Control Scheme; (8)300kHz Switching Frequency; (9)Internal, 1A, N-Channel Power FET; (10)LBI/LBO Low-Battery Comparator.
