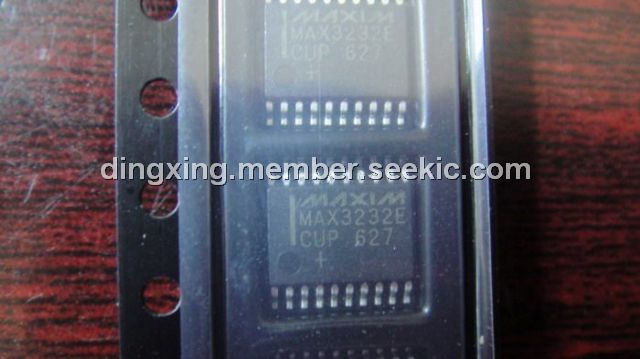

MAX3232ECUP+

Product Summary

The MAX3232ECUP+ +3.0V-powered EIA/TIA-232 and V.28/V.24 communications interface device features low power consumption, high data-rate capabilities, and enhanced electrostatic-discharge (ESD) protection. The enhanced ESD structure protects all transmitter outputs and receiver inputs to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge(±9kV for MAX3246E), and ±15kV using the Human Body Model. The logic and receiver I/O pins of the MAX3237E are protected to the above standards, while the transmitter output pins are protected to ±15kV using the Human Body Model. The MAX3232ECUP+ have two receivers and two transmitters. The MAX3232ECUP+ features a 1μA shutdown mode that reduces power consumption in battery-powered portable systems. The MAX3232ECUP+ receivers remain active in shutdown mode, allowing monitoring of external devices while consuming only 1μA of supply current. The MAX3232ECUP+ and MAX3232E are pin, package, and functionally compatible with the industry-standard MAX242 and MAX232, respectively.

Parametrics

MAX3232ECUP+ absolute maximum ratings: (1)VCC to GND: -0.3V to +6V; (2)V+ to GND: -0.3V to +7V; (3)V- to GND: +0.3V to -7V; (4)V+ + |V-|: +13V; (5)Input Voltages, T_IN, EN, SHDN, MBAUD to GND: -0.3V to +6V; R_IN to GND: ±25V; (6)Output Voltages, T_OUT to GND: ±13.2V; R_OUT, R_OUTB (MAX3241E): -0.3V to (VCC + 0.3V); (7)Short-Circuit Duration, T_OUT to GND: Continuous; (8)Operating Temperature Ranges, MAX32_ _EC_ _: 0℃ to +70℃; MAX32_ _EE_ _: -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10s): +300℃; (11)Bump Reflow Temperature, Infrared, 15s: +200℃; Vapor Phase, 20s: +215℃.

Features

MAX3232ECUP+ features: (1)ESD Protection for RS-232 I/O Pins; (2)ESD Protection for all Logic and Receiver I/O Pins: ±15kV, Human Body Model; ±8kV, IEC 1000-4-2, Contact Discharge; ±15kV–IEC 1000-4-2, Air-Gap Discharge; (3)ESD Protection for Transmitter Output Pins, ±15kV—Human Body Model; (4)Guaranteed Data Rate, 250kbps (MAX3222E/MAX3232E/MAX3241E/ MAX3246E/MAX3237E, Normal Operation); 1Mbps (MAX3237E, MegaBaud Operation); (5)Latchup Free; (6)Low-Power Shutdown with Receivers Active 1μA MAX3222E/MAX3241E/MAX3246E) 10nA (MAX3237E); (7)Flow-Through Pinout (MAX3237E); (8)Guaranteed Mouse Drivability (MAX3241E); (9)Meets EIA/TIA-232 Specifications Down to +3.0V.

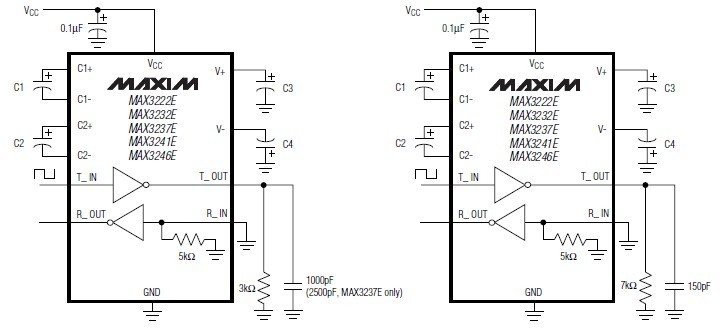

Diagrams
