Product Summary

The LM1085ISX-3.3 is a low dropout positive voltage regulator with a maximum dropout of 1.5V at 3A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1085ISX-3.3 is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in three fixed voltages: 3.3V, 5.0V and 12.0V. The fixed versions integrate the adjust resistors. The applications of the LM1085ISX-3.3 are High Efficiency Linear Regulators, Battery Charger, Post Regulation for Switching Supplies, Constant Current Regulator, Microprocessor Supply.

Parametrics

LM1085ISX-3.3 absolute maximum ratings: (1)Maximum Input to Output Voltage Differential:27V; (2)Power Dissipation:Internally Limited; (3)Junction Temperature (TJ):150℃; (4)Storage Temperature Range:-65℃ to 150℃; (5)Lead Temperature:260℃, to 10 sec; (6)ESD Tolerance:2000V.

Features

LM1085ISX-3.3 features: (1)Available in 3.3V, 5.0V, 12V and Adjustable Versions; (2)Current Limiting and Thermal Protection; (3)Output Current 3A; (4)Line Regulation 0.015% (typical); (5)Load Regulation 0.1% (typical).

Diagrams

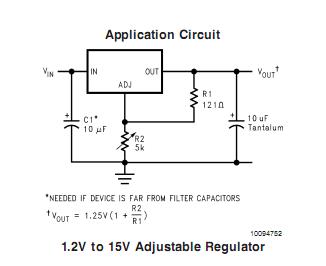

LM1085ISX-3.3 application circuit
