Product Summary

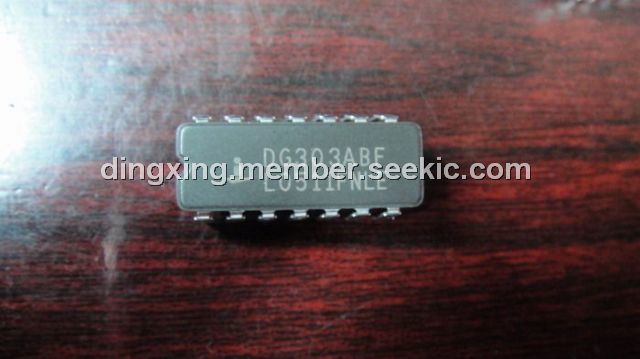

The DG303ABF is a CMOS Analog Switch. It is truly compatible second source of the original manufacturer. The DG303ABF is latch-proof and is designed to block signals up to 30VP-P when OFF. Featuring low leakage and low power consumption, the DG303ABF is ideally suited for precision application in instrumentation, communication, data acquisition and battery powered applications. Other key features include Break-Before-Make switching, TTL and CMOS compatibility, and low ON resistance. Single supply operation (for positive switch voltages) is possible by connecting V- to 0V.

Parametrics

DG303ABF absolute maximum ratings: (1)V+toV- :44.0V; (2)V-toGND: 25V; (3)Digital Inputs, VS,VD:(V-)-2Vto(V+)+2V or 30mA, Whichever Occurs First; (4)ContinuousCurrent,(AnyTerminal):30mA; (5)Peak Current, S or D (Pulsed 1ms, 10% Duty Cycle Max):100mA.

Features

DG303ABF features: (1)Low Power Consumption; (2)Break-Before-Make Switching: tON:150ns, tOFF:130ns; (3)TTL, CMOS Compatible; (4)Low rDS(ON) (Max):50Ω; (5)Single Supply Operation; (6)True Second Source.

Diagrams
