Product Summary

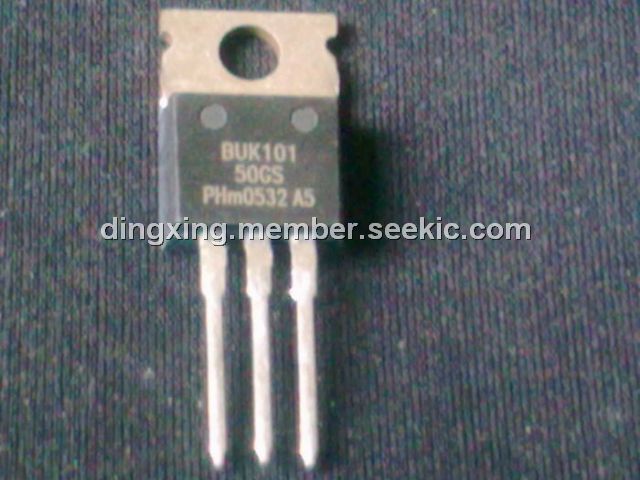

The BUK101-50GS is a PowerMOS transistor. Monolithic temperature and overload protected power MOSFET in a 3 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications. The applications of the BUK101-50GS are lamps, motors, solenoids, heaters.
Parametrics
BUK101-50GS absolute maximum ratings: (1)Continuous off-state drain source voltage1:50V; (2)Continuous input voltage:0V to 11V; (3)Continuous drain current:29A; (4)Continuous drain current:18A; (5)Repetitive peak on-state drain current:120A; (6)Total power dissipation:75W; (7)Storage temperature:-55℃ to 150℃; (8)Continuous junction temperature:150℃; (9)Lead temperature during soldering:250℃.
Features
BUK101-50GS features: (1)Vertical power DMOS output stage; (2)Low on-state resistance; (3)Overload protection against over temperature; (4)Overload protection against short circuit load; (5)Latched overload protection reset by input; (6)10 V input level; (7)Low threshold voltage also allows 5 V control; (8)Control of power MOSFET and supply of overload protection circuits derived from input; (9)ESD protection on input pin; (10)Overvoltage clamping for turn off of inductive loads.

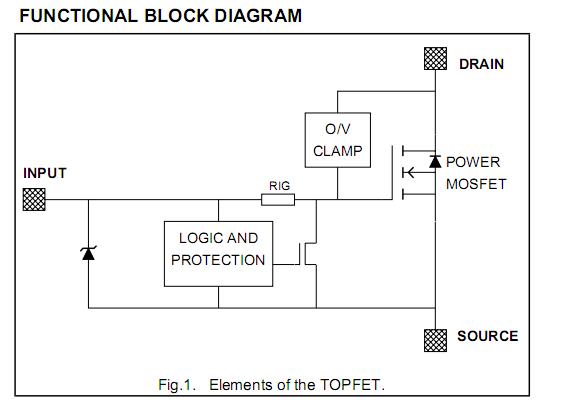

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BUK101-50GS |
NXP Semiconductors |
MOSFET RAIL TOPFET |
Data Sheet |
Negotiable |
|
||||
|
BUK101-50GS,127 |
NXP Semiconductors |
MOSFET RAIL TOPFET |
Data Sheet |
Negotiable |
|
||||
