Product Summary
The AM29LV010B-70EC is a 1 Mbit, 3.0 Volt-only Flash memory device organized as 131,072 bytes. The AM29LV010B-70EC has a uniform sector architecture.
Parametrics
AM29LV010B-70EC absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground; (4)All pins except A9 and OE: –0.5 V to VCC+0.5 V; (5)VCC: –0.5 V to +4.0 V; (6)A9 and OE: –0.5 V to +12.5 V; (7)Output Short Circuit Current: 200 mA.
Features
AM29LV010B-70EC features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)Ultra low power consumption (typical values at 5 MHz); (5)Flexible sector architecture; (6)Unlock Bypass Mode Program Command; (7)Embedded Algorithms; (8)Minimum 1,000,000 write cycle guarantee per sector; (9)20 Year data retention at 125℃.

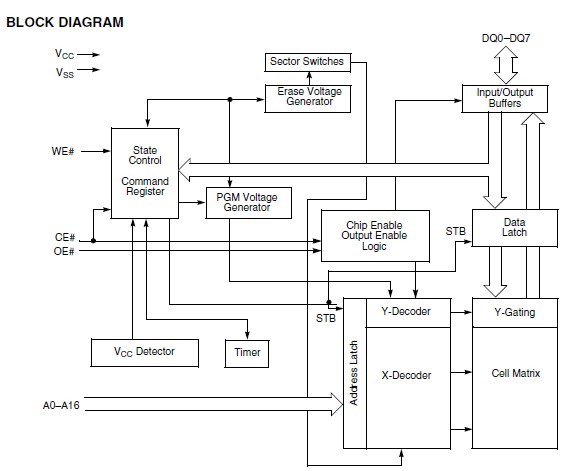

Diagrams
 |
