Product Summary
The 2SC2631 is a Silicon NPN epitaxial planer type. It is suited for low-frequency high breakdown voltage amplification Complementary to 2SA1123.
Parametrics
2SC2631 absolute maximum ratings: (1)Collector to base voltage:150V; (2)Collector to emitter voltage:150V; (3)Emitter to base voltage:5V; (4)Peak collector current:100mA; (5)Collector current:50mA; (6)Collector power dissipation:750mW; (7)Junction temperature:150℃; (8)Storage temperature:-55℃ to +150℃.
Features
2SC2631 features: (1)Satisfactory linearity of forward current transfer ratio hFE; (2)High collector to emitter voltage VCEO; (3)Small collector output capacitance Cob.

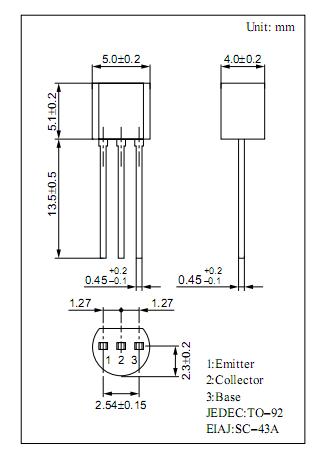

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC2631 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
2SC26310RA |
|
TRANS NPN 150VCEO 50MA TO-92 |
Data Sheet |
Negotiable |
|
||||
