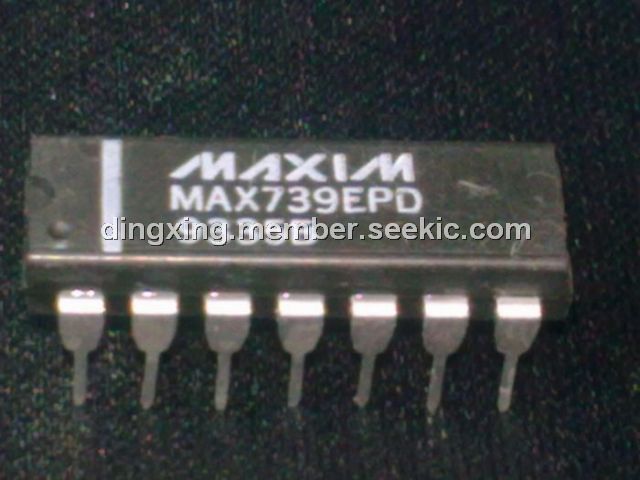

MAX739EPD

CMOS, inverting, switch-mode regulator, DIP, 1.25W guaranteed output power, 1μA shutdown mode, 0.3V, low noise

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: MAX739EPD

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 96+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-08

From Other Seller

Part Number:MAX739EPD
US $1.00 - 10.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX739EPD is a CMOS, inverting, switch-mode regulator with an internal power MOSFET. Guaranteed output power for the device is 1.25W when powered from a +4.5V input, and 1.5W when powered from +6V. The applications of the MAX739EPD include low-noise analog signal processing circuits, LCD bias supplies, power supplies for ECL, board-level DC-DC conversion, battery-powered equipment and computer peripherals.

Parametrics

MAX739EPD absolute maximum ratings: (1)supply votlage: 15.5V, -0.3V; (2)maximum input/output differential: 22V; (3)negative drive voltage: -17V, 0.3V; (4)switch voltage: -22.5V, 0.3V; (5)feedback voltage: ±50V; (6)auxilary input voltages: -0.3 to V++0.3V; (7)peak switch current: 2.5A; (8)reference current: 2.5mA; (9)contimuous power dissipation: 800mW; (10)operating temperature range: 0 to 70℃; (11)junction temperature: 150℃; (12)storage temperature range: -65 to 160℃; (13)lead temperature: 300℃.

Features

MAX739EPD features: (1)pre-set 5V, 12V, 15V or adjustable outputs; (2)convert positive voltages to negative; (3)1.25W guaranteed output power; (4)83% typical efficiency; (5)1.7mA qulescent current; (6)1μA shutdown mode; (7)4V to 15V input voltage range; (8)165KHz current-mode PWM, low noise and jitter; (9)undervoltage lockout and soft-start protection.
