Product Summary

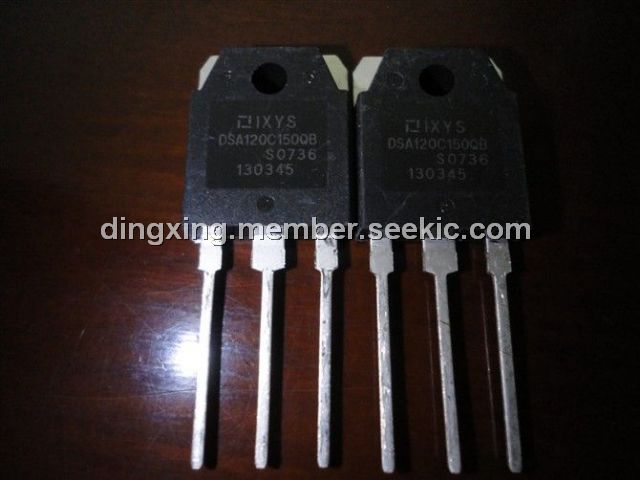

The DSA120C150QB is a High Performance Schottky Diode. The applications of it are Rectifiers in switch mode power supplies (SMPS), Free wheeling diode in low voltage converters.
Parametrics
DSA120C150QB absolute maximum ratings: (1)max. repetitive reverse voltage,TVJ =25℃:150V; (2)reverse current,VR=150V:TVJ =25℃:1.8mA, TVJ =125℃:5mA; (3)virtual junction temperature:-55℃ to 175℃; (4)total power dissipation:375W; (5)max. forward surge current:600A; (6)junction capacitance:481pF; (7)threshold voltage:0.51V; (8)slope resistance:3.9mΩ; (9)thermal resistance junction to case:0.40K/W.
Features
DSA120C150QB features: (1)Very low Vf; (2)Extremely low switching losses; (3)low Irm values; (4)Improved thermal behaviour; (5)High reliability circuit operation; (6)Low voltage peaks for reduced protection circuits; (7)Low noise switching.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() DSA120C150QB |
![]() Ixys |
![]() Schottky (Diodes & Rectifiers) 120 Amps 150V |
![]() Data Sheet |
![]() Negotiable |
|
||||
