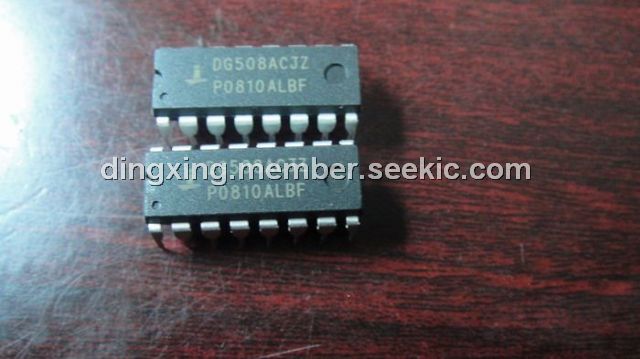

DG508ACJZ

CMOS Analog Multiplexer, DIP, 44V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: DG508ACJZ

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. DINGXING's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-27

From Other Seller

Part Number:DG508ACJZ
US $1.00 - 10.00
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
AT45DB161B-TU

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DG508ACJZ is a CMOS Monolithic 8-Channel Analog Multiplexer, which can also be used as a demultiplexer. An enable input is provided. When the enable input is high, a channel is selected by the address inputs, and when low, all channels are off. The DG508ACJZ is pinout compatible with the industry standard devices. A channel in the ON state conducts current equally well in both directions. In the OFF state each channel blocks voltages up to the supply rails. The address inputs and the enable input are TTL and CMOS compatible over the full specified operating temperature range. The applications of the DG508ACJZ are Data Acquisition Systems, Communication Systems, Signal Multiplexing/Demultiplexing, Audio Signal Multiplexing.

Parametrics

DG508ACJZ absolute maximum ratings: (1)V+ to V-:44V; (2)V- to Ground:25V; (3)Digital Inputs, VS, VD:(V- -2V) To (V+ +2V); (4)Continuous Current, (Any Terminal Except S or D):30mA; (5)Continuous Current, (S or D):20mA; (6)Peak Current, S or D (Pulsed 1ms, 10% Duty Cycle Max):40mA.

Features

DG508ACJZ features: (1)Low Power Consumption; (2)TTL and CMOS-Compatible Address and Enable Inputs; (3)44V Maximum Power Supply Rating; (4)High Latch-Up Immunity; (5)Break-Before-Make Switching; (6)Alternate Source; (7)Pb-free Available.
