MAX319CSA

Product Summary

The MAX319CSA is a precision, CMOS, monolithic analog switch. The singlepole double-throw (SPDT) MAX319CSA has one normally open and one normally closed switch. The MAX319CSA offers low on resistance (less than 35.), guaranteed to match within 2. between channels and to remain flat over the analog signal range (A3. max). They also offer low leakage (less than 250pA at +25℃ and less than 6nA at +85℃) and fast switching (turn-on time less than 175ns and turn-off time less than 145ns). The MAX319CSA is fabricated with Maxim new improved silicon-gate process. Design improvements guarantee extremely low charge injection (10pC), low power consumption (35μW), and electrostatic discharge (ESD) greater than ±2000V. The 44V maximum breakdown voltage allows rail-to-rail analog signal handling capability.

Parametrics

MAX319CSA absolute maximum ratings: (1)Voltage Referenced to V- V+: +44V; GND: +25V; VL: (GND - 0.3V) to (V+ + 0.3V); IN, COM, NC, NO: (V- - 2V) to (V+ + 2V) or 30mA; (2)Continuous Current (any terminal): 30mA; (3)Peak Current, NC, NO, COM, (pulsed at 1ms, 10% duty cycle max): 100mA; (4)ESD: ±2000V; (5)Continuous Power Dissipation (TA = +70℃), Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; SO (derate 5.88mW/℃ above +70℃): 471mW; CERDIP (derate 8.00mW/℃ above +70℃): 640mW; (6)Operating Temperature Ranges: MAX31_C_ _: 0℃ to +70℃; MAX31_E_ _ : -40℃ to +85℃; MAX31_MJA: -55℃ to +125℃; (7)Storage Temperature Range: -55℃ to +150℃; (8)Lead Temperature (soldering, 10sec):+300℃.

Features

MAX319CSA features: (1)Low On Resistance <20Ω Typical (35Ω Max); (2)Guaranteed Matched On Resistance Between Channels <2Ω Guaranteed Flat On Resistance over Analog Signal Range △3Ω Max; (3)Guaranteed Charge Injection <10pC; (4)Guaranteed Off-Channel Leakage <6nA at +85℃; (5)ESD Guaranteed > 2000V per Method 3015.7; (6)Single-Supply Operation (+10V to +30V); (7)Bipolar-Supply Operation (±4.5V to ±20V); (8)TTL-/CMOS-Logic Compatible; (9)Rail-to-Rail Analog Signal Handling Capability.

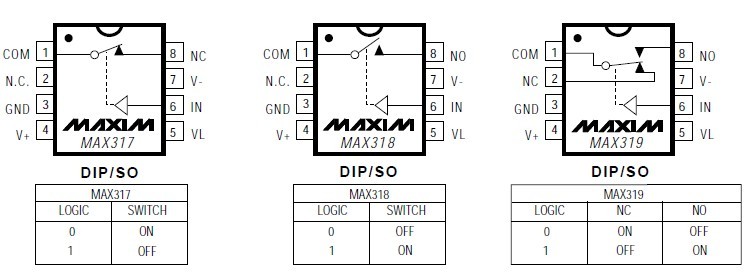

Diagrams
